I SERIES

Extension plugin compatible with Netgear M4250 & M4350 AV Line series

I-4250 is an additional compatibility feature that allows Agora Controller software to control the Netgear AV Line series.

After acquiring an encrypted key linked to the MAC address of the unit concerned, it becomes controllable by the Agora Controller software and adopts the same functionalities and mechanisms as other Agora products.

The software suite includes:

  • 1 * Unique encrypted key file (order reference: I-4250L / I-4250H / I-4350)
  • 1 * Netgear software image (Available in the download center)
  • 1 * Agora dedicate config file (Available in the download center)


M4250 supported models:  GSM4210PD / GSM4210PX / GSM4212P / GSM4212PX / GSM4212UX / GSM4230PX / GSM4230UP / GSM4248P / GSM4248PX / GSM4248UX / MSM4214X / XSM4216F

M4350 supported models: XSM4328FV

Extension plugin compatible with Aruba 2930m series

I-2930m is an additional compatibility feature that allows Agora Controller software to control the Aruba 2930M series.

After acquiring an encrypted key linked to the MAC address of the unit concerned, it becomes controllable by the Agora Controller software and adopts the same functionalities and mechanisms as other Agora products.

The software suite includes:

  • 1 * Unique encrypted key file (order reference: I-2930m)
  • 1 * Aruba software image (Available in the download center)
  • 1 * Agora dedicate config file (Available in the download center)

The compatible Agora mini Gbic SFP and SFP  modules are:

  • AGGS - SFP Gigabit Single Mode 1310nm

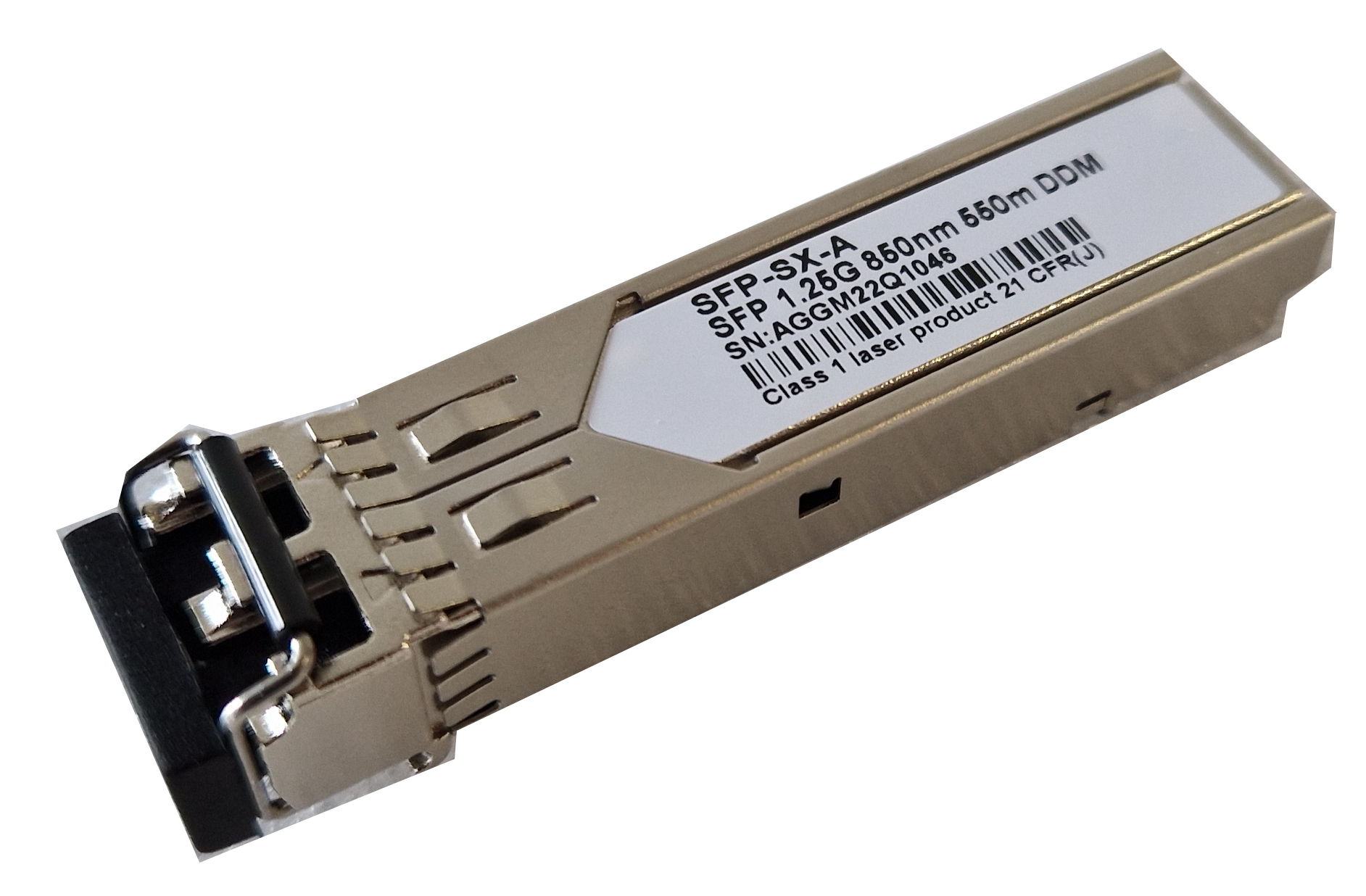

  • AGGS - SFP Gigabit Multi Mode 850nm

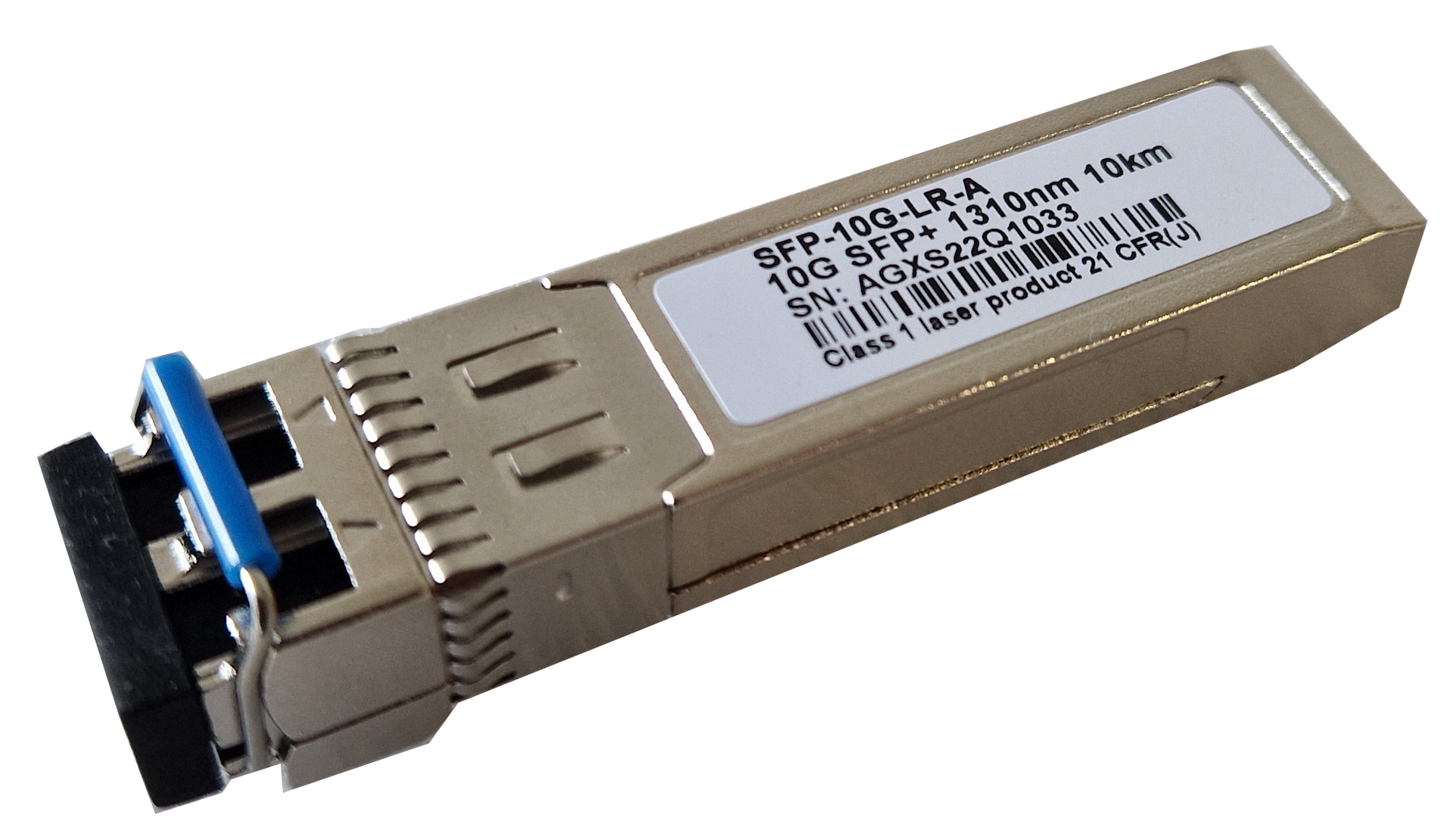

  • AGXS - SFP  10 Gigabit Single Mode 1310nm

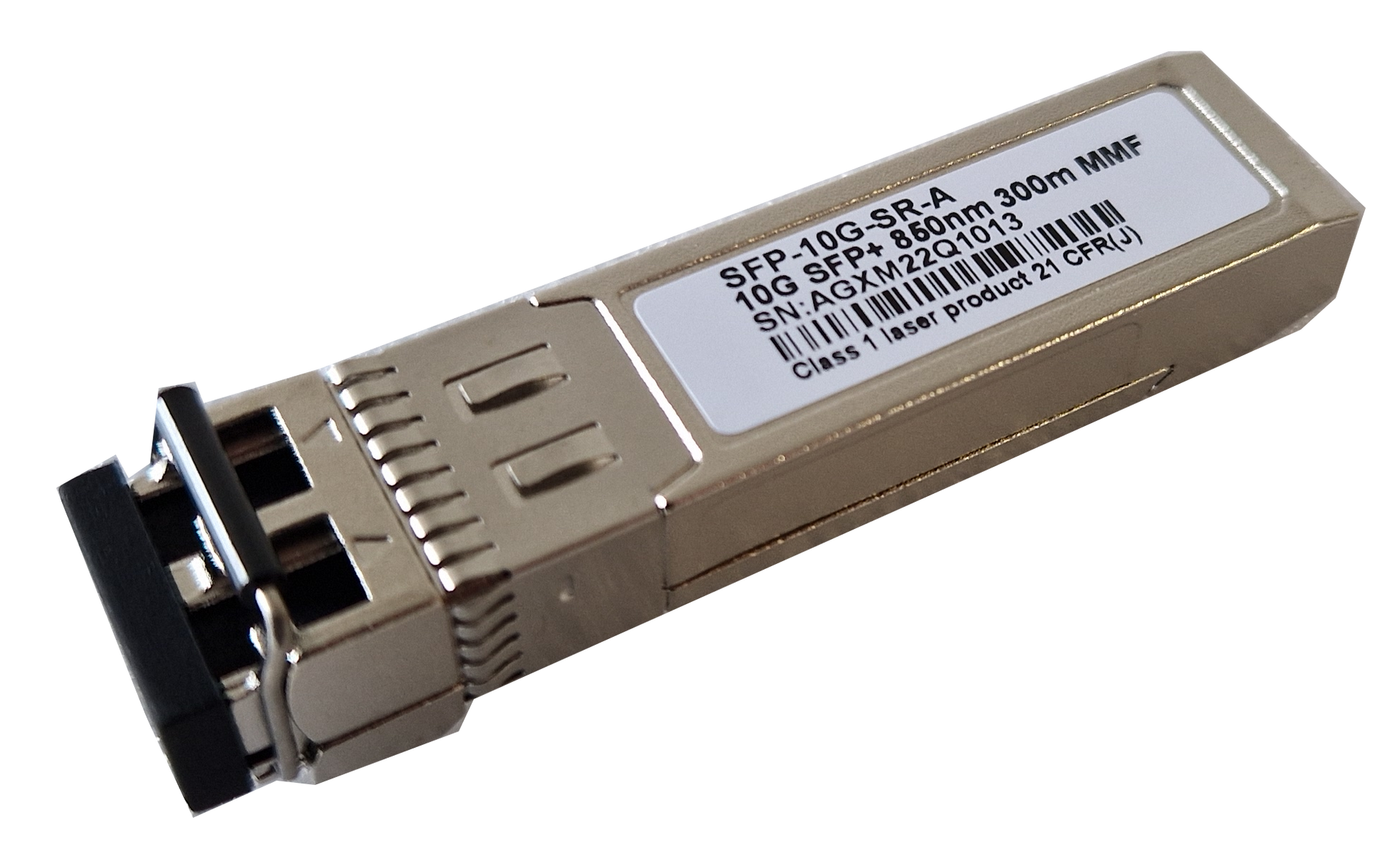

  • AGXM - SFP  10 Gigabit Multi Mode 850nm

JL319a & JL320a (PoE+) - 24 ports

JL321a & JL322a (PoE+) - 48 ports

All options for 2930m series

Agora Transceivers SFP & SFP+

Features

I-2930m is an additional compatibility feature that compatibility feature that enables the Agora Controller software to control the Aruba 2930M series. After acquiring an encrypted key linked to the MAC address of the unit concerned, it becomes controllable by the Agora Controller software and

adopts the same functionalities and mechanisms as other Agora products.


I-2930m software suite includes:

  • 1 * Unique encrypted key file
  • 1 * Aruba software image
  • 1 * Agora dedicated config file

Compatible Aruba 2930m models:

  • JL319a - 24 RJ45 ports (including 4 SFP combo)
  • JL320a - 24 ports RJ45 PoE+(including 4 SFP combo)
  • JL321a - 48 ports RJ45 + (including 4 SFP combo)
  • JL322a - 48 ports RJ45 PoE+ (including 4 SFP combo)
  • Available options

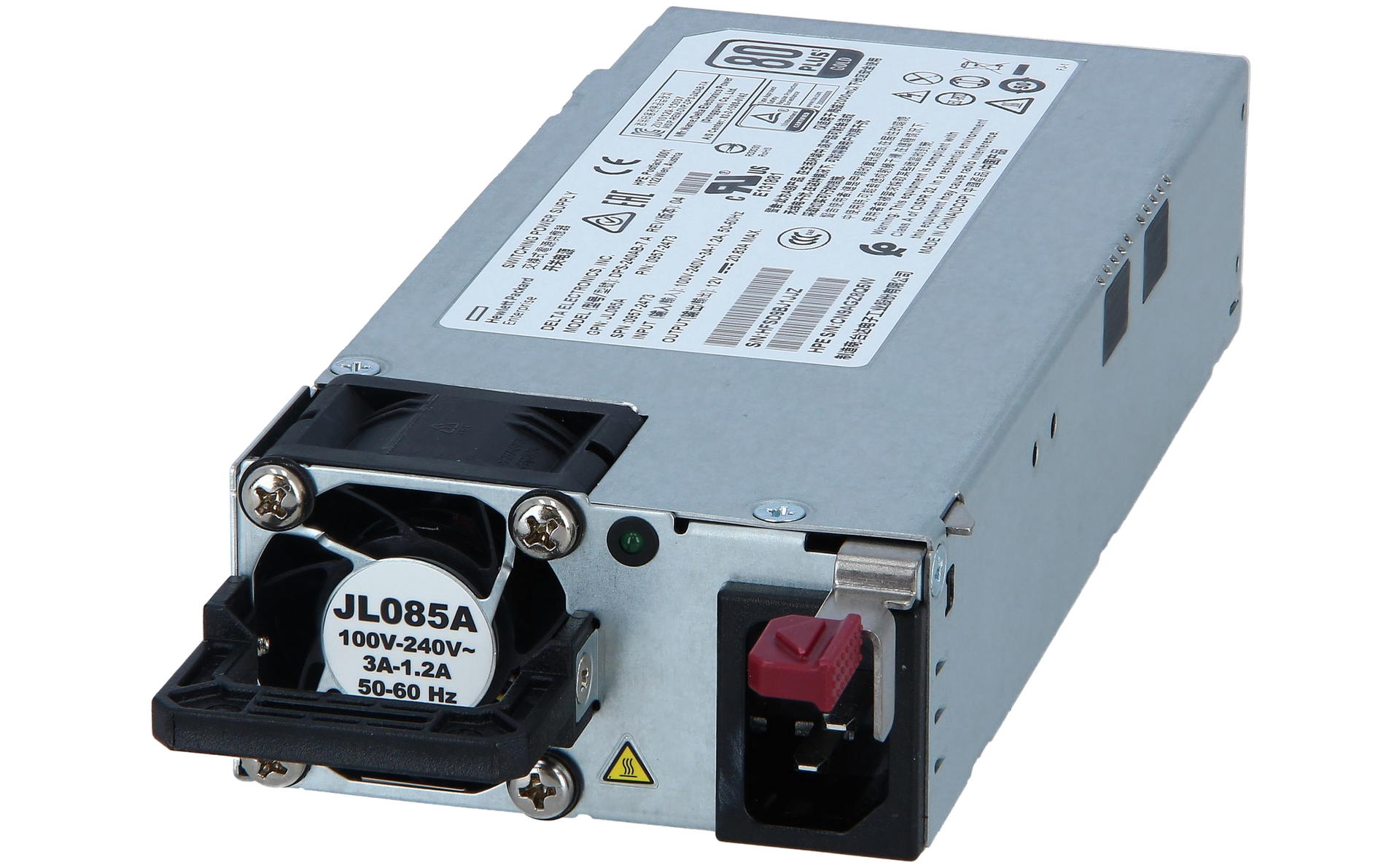

  • JL085a: Power supply for JL319a and JL321a (WITHOUT PoE+)

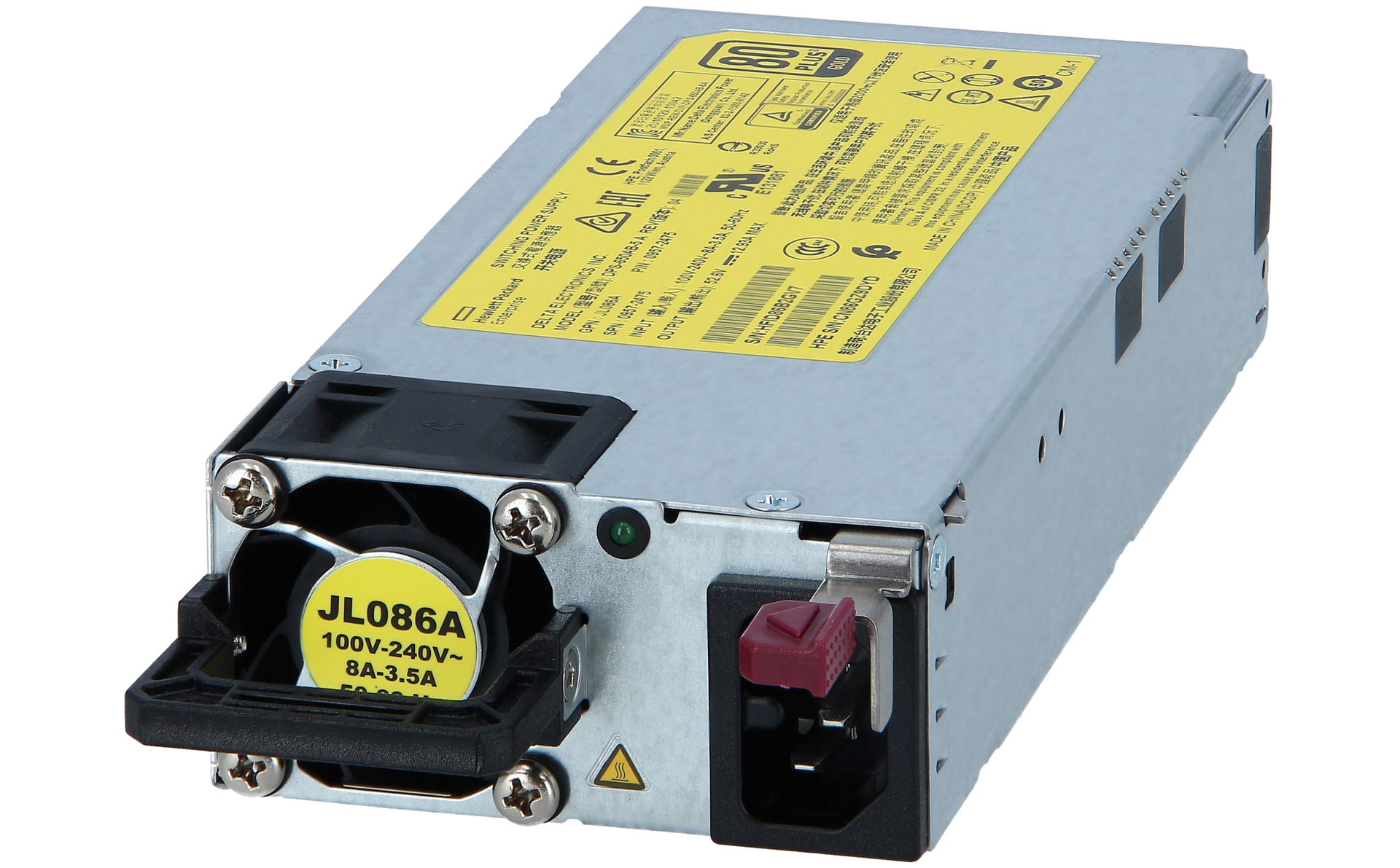

  • JL086a: Power supply for JL320a and JL322a (WITH PoE+ - 680W)

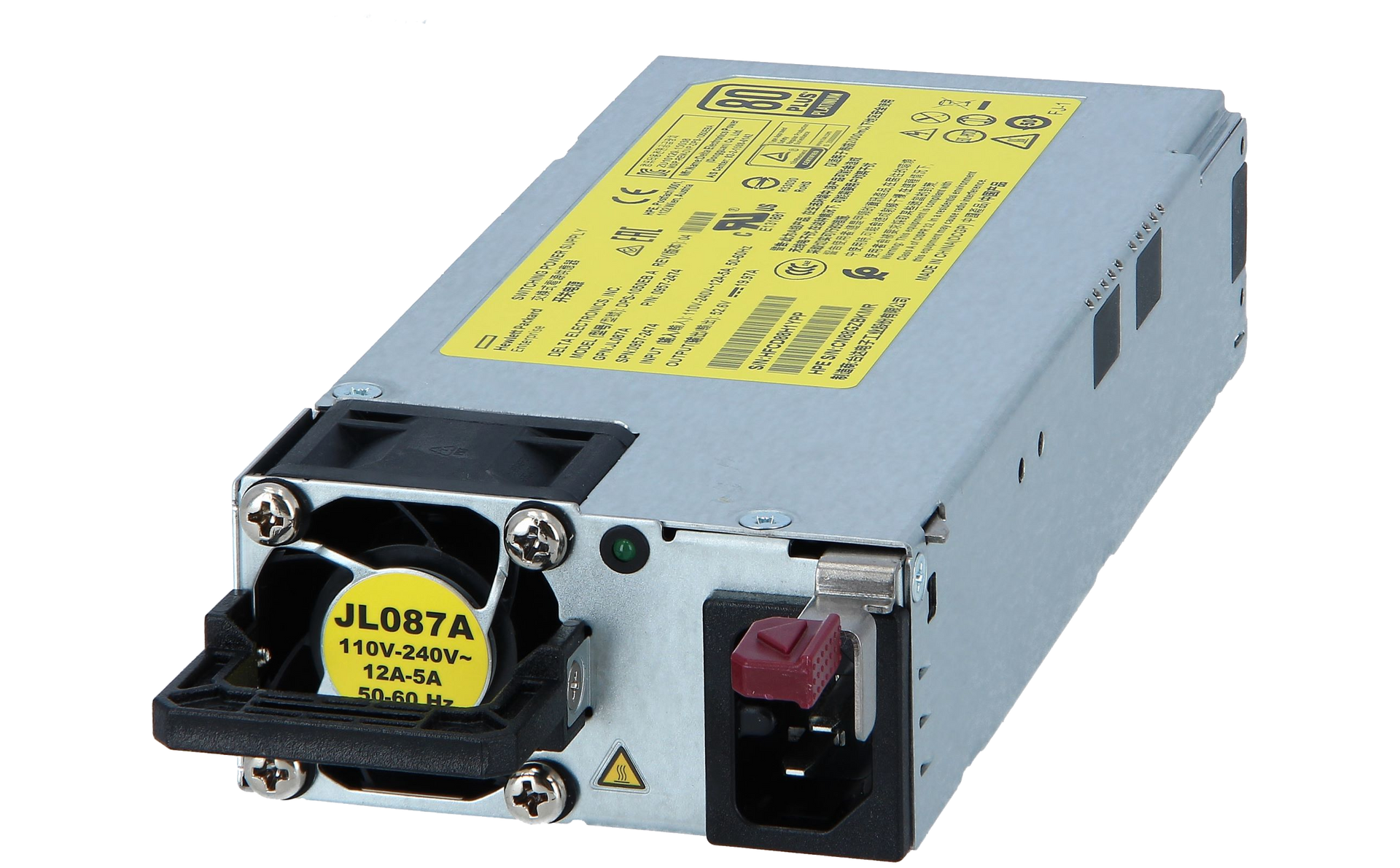

  • JL087a : Power supply for JL320a and JL322a (WITH PoE+ - 1050W)

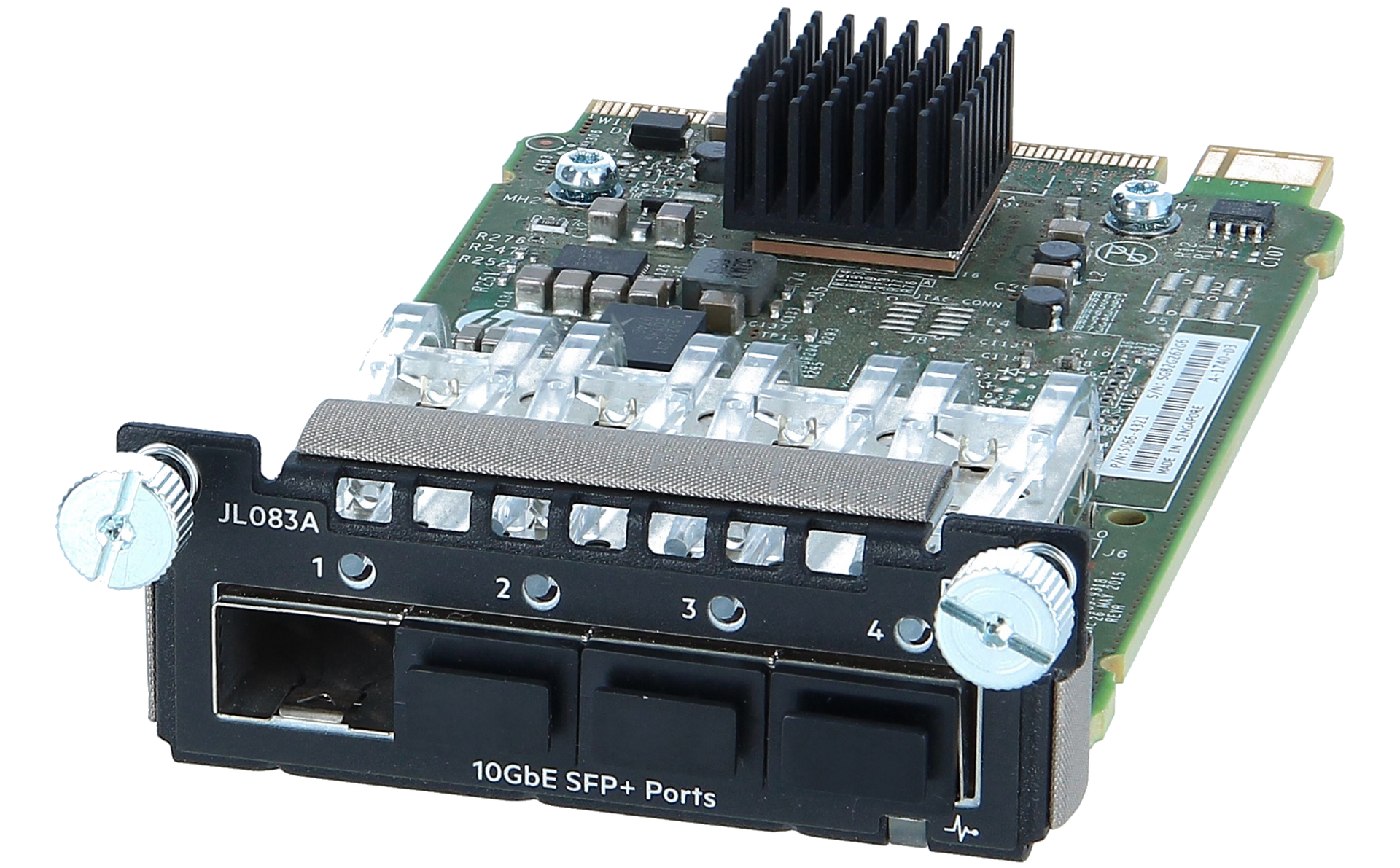

  • JL083a: Add-on card with 4 * SFP/SFP+
  • JL081a: Add-on board with 4 * 1/2.5/5/10 GbE RJ45 ports

High density/ PoE+ / Transparent clock (Riedel/ClearCom)

The Agora Controller's compatibility with Aruba's 2930m series makes it possible to build high-density 1 Gigabit and 10 Gigabit network cores. This series can therefore be installed in the nodal or in a HF microphone rack.

PoE+ models are also available.

Finally, for Intercom users communicating via AES67 and incorporating D.E.C.T. technology, all 2930m models are "TRANSPARENT CLOCK" and meet the precision criteria for clock transmission between "MASTER" and "SLAVES" antennas. The 2930m is on the Riedel white list, for example.

Small - Medium - Large network size

Touring/ Live/ Events (Custom patch panels with EtherCON and OpticalCON connectors available on request).

Fixed installations

Radio & TV


Compatible with Fast, Ghost and H series.

ARUBA 2930M series must be used with Agora SFPs (AGGM, AGGS, AGXM, AGXS).
