Setup technique

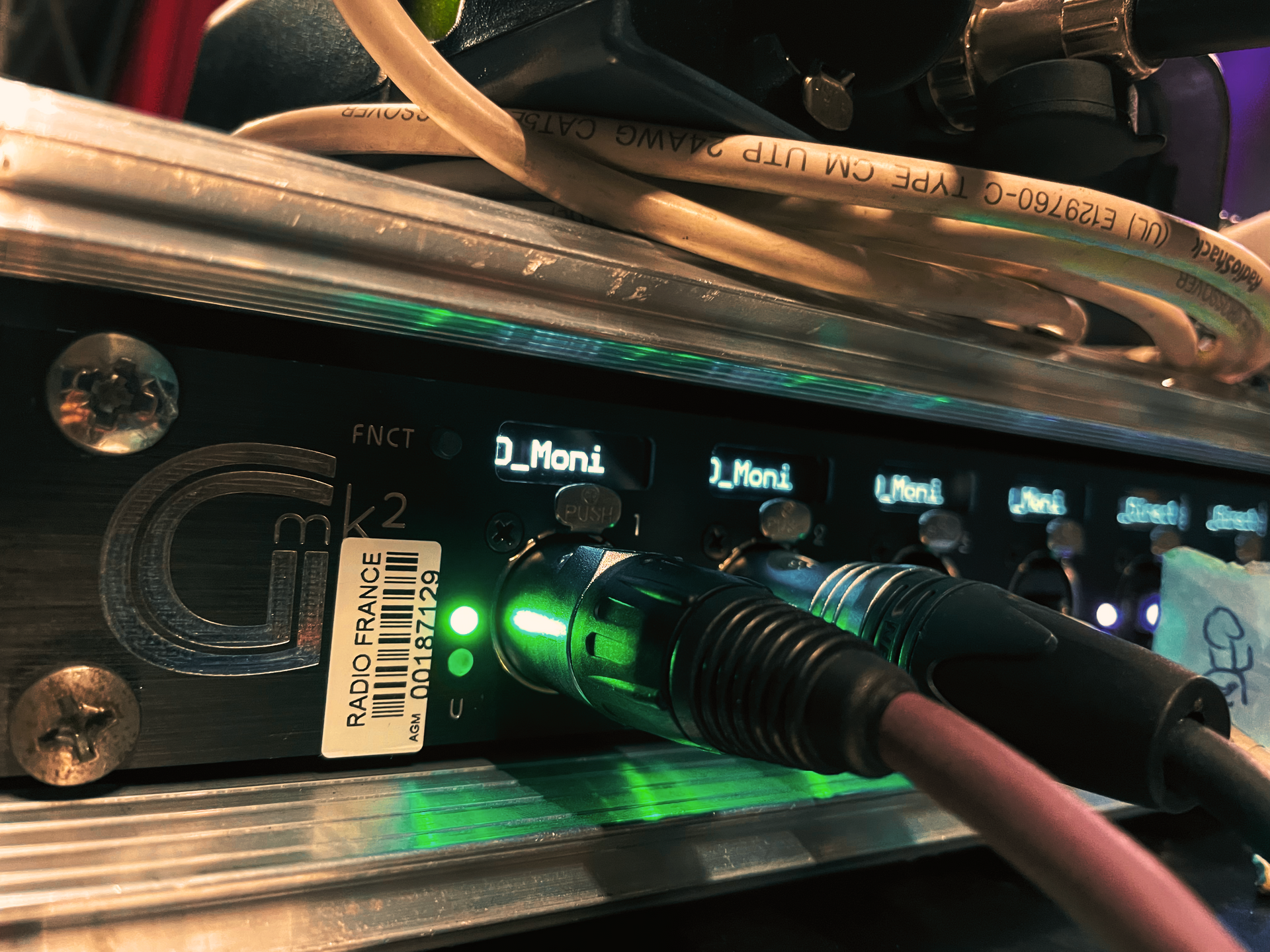

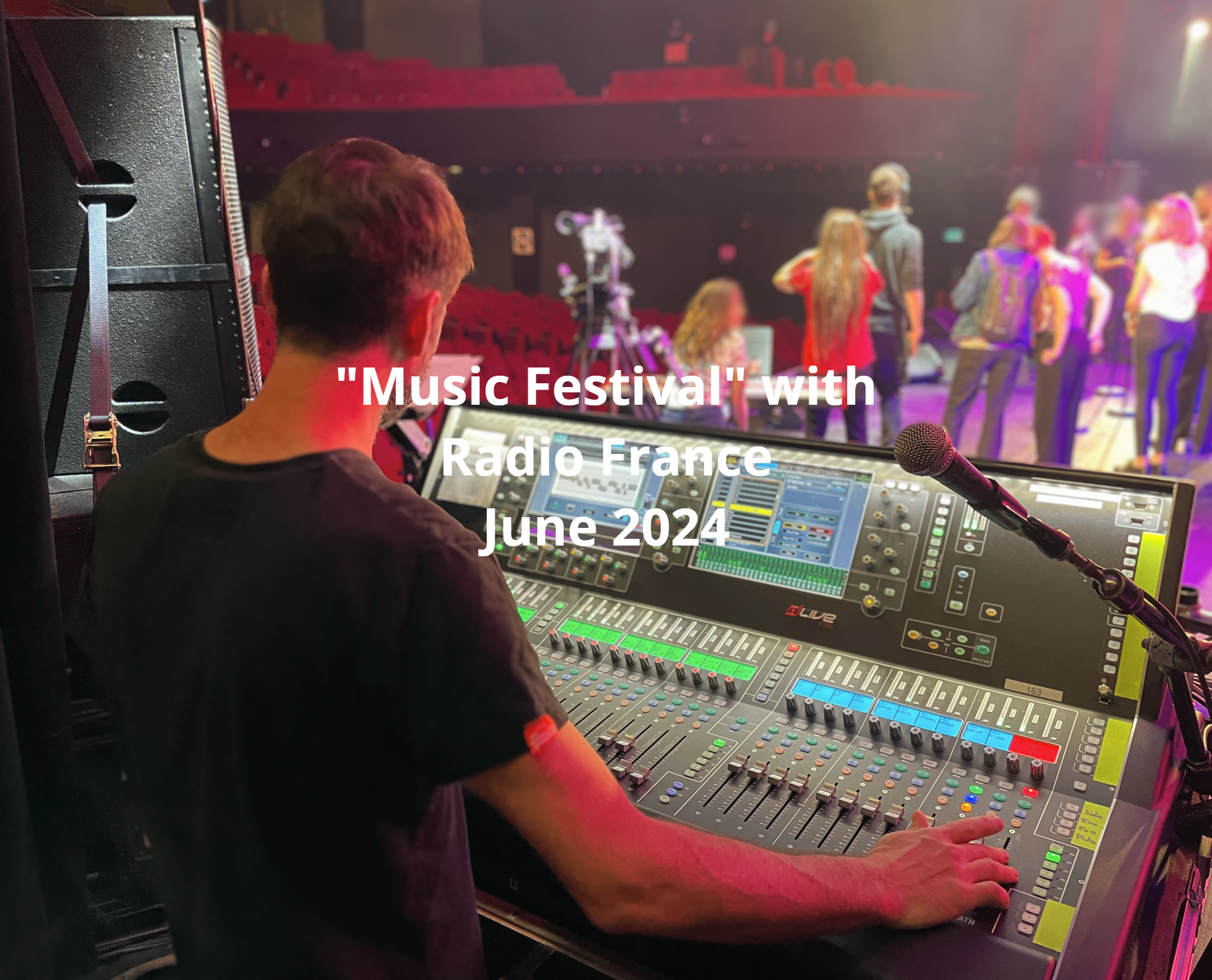

The Radio France audio team was in charge of the live broadcast at the Olympia and the recording for the France Inter live broadcast. Radio France supplied the consoles, the microphones, the intercom, the stage broadcast and the network.

GHOST 2

AUDIO/ LIGHT

LIVE/ BROADCAST

1 GIGABIT

FOH management

You can see Tanguy le Corno and Benjamin Perru here behind the famous SY80 Innovason #Ethersound ;-)

A few words from users

Technical setup

It was a real pleasure for the Agora team to work with the Châtelet team, whom we thank. The specifications were clear and the skills of the different people came together very naturally. We also thank Blive, the company which ensured the integration on site.

Key points:

• Many and different information transported in a secure way. Link redundancy, power supply redundancy.

• A dedicated and intuitive tool for resident and external technicians.

• A scalable and sustainable network infrastructure.

• A reliable and stable tool responding to a sustained frequency of use.

ARUBA 2930M

GHOST X

AUDIO/ VIDEO

LIVE

BROADCAST

ADMIN

1/ 10 GIGABITS

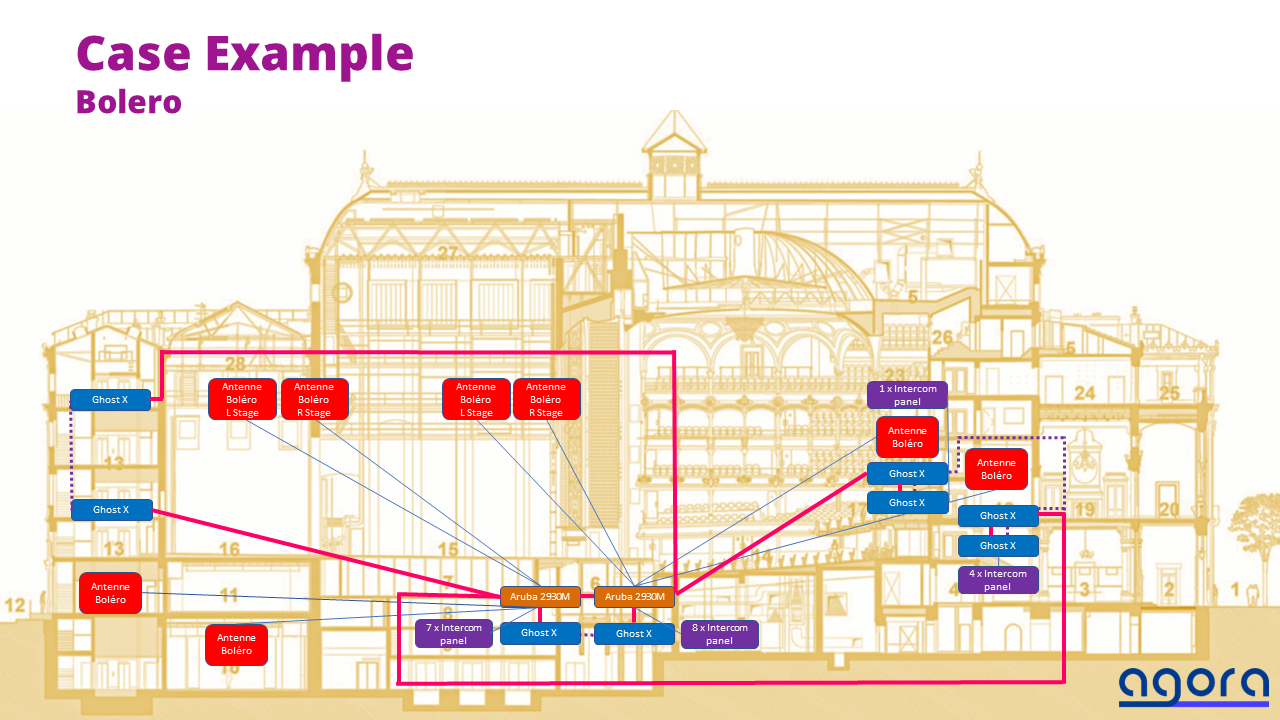

Architecture in redundant double rings

The Aruba 2930M core network models offer a density of 48 RJ45 ports and up to 8 SFP/SFP . Edge Ghost units provide a flexible and robust system;

A few words from users

Technical setup

The C.R.E.A (Centre de Ressources et d'Etudes Audiovisuelles) department at the University of Rennes is responsible for the technical management of the University's studios, amphitheaters and events. Most facilities are fully equipped, but CREA also has a fleet of mobile equipment, enabling it to optimize investments and maintain a certain flexibility in the face of the diversity of services required. In addition, the C.R.E.A department is responsible for audio and video recording of concerts, conferences or events taking place at the Opéra, "Le Liberté" (Concert hall) or "Le Couvent des Jacobins" (Congress center), etc...

"Thanks to the fiber-optic network, we no longer need to move technical resources around, and we reduce fatigue and working hours."

Key points:

• Many different types of information are transported securely. Wavelength multiplexing, dedicated fiber network for audiovisual applications.
• A dedicated, intuitive tool for internal and external AV technicians.
• A flexible network infrastructure easy to set up.
• A high level of working comfort.

GHOST PI

AUDIO/ VIDEO

LIVE

BROADCAST

ADMIN

1 GIGABIT

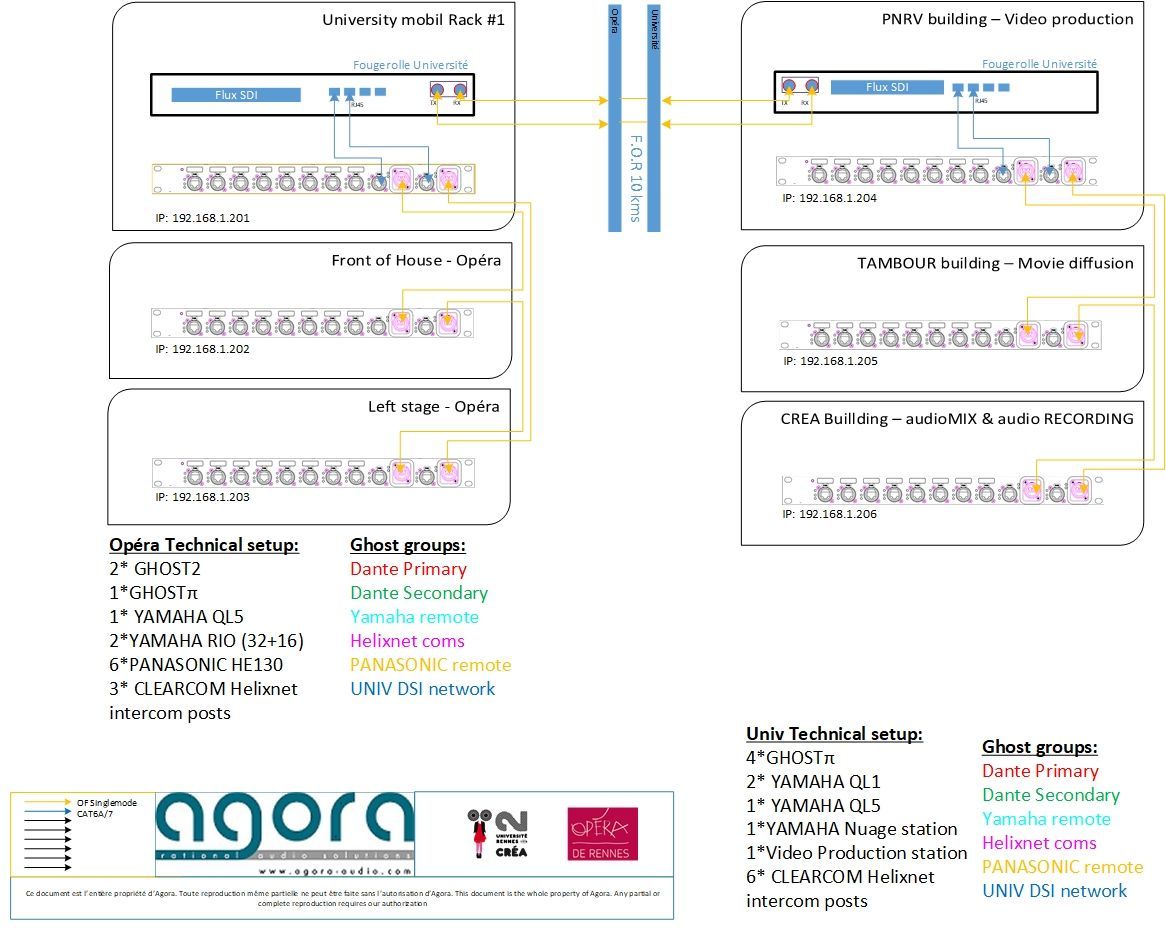

A fiber-optic network dedicated to audiovisual flows

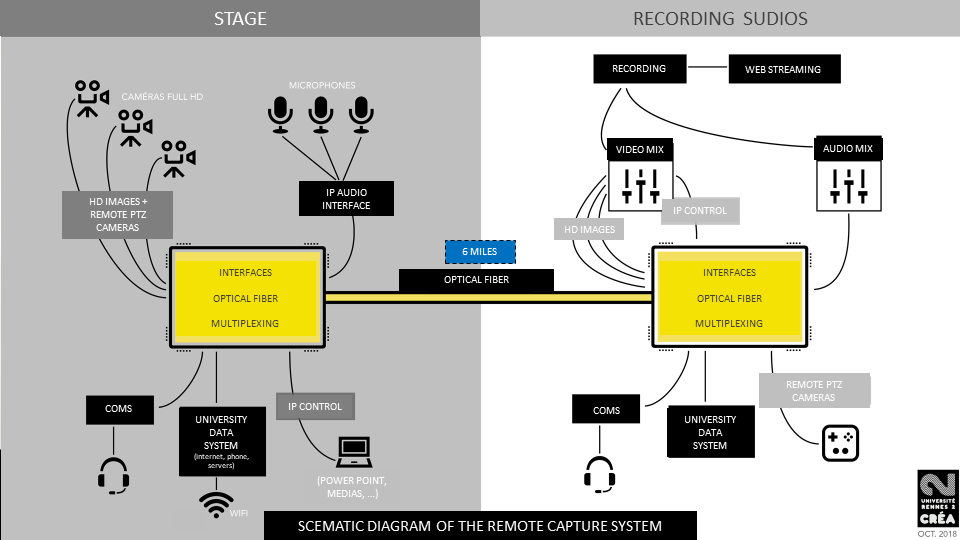

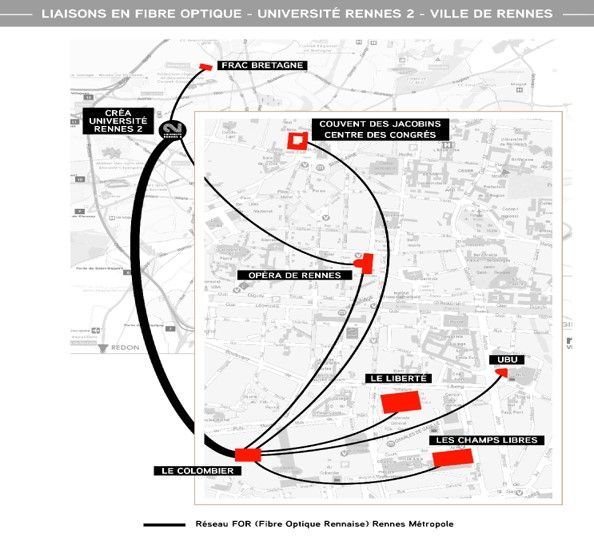

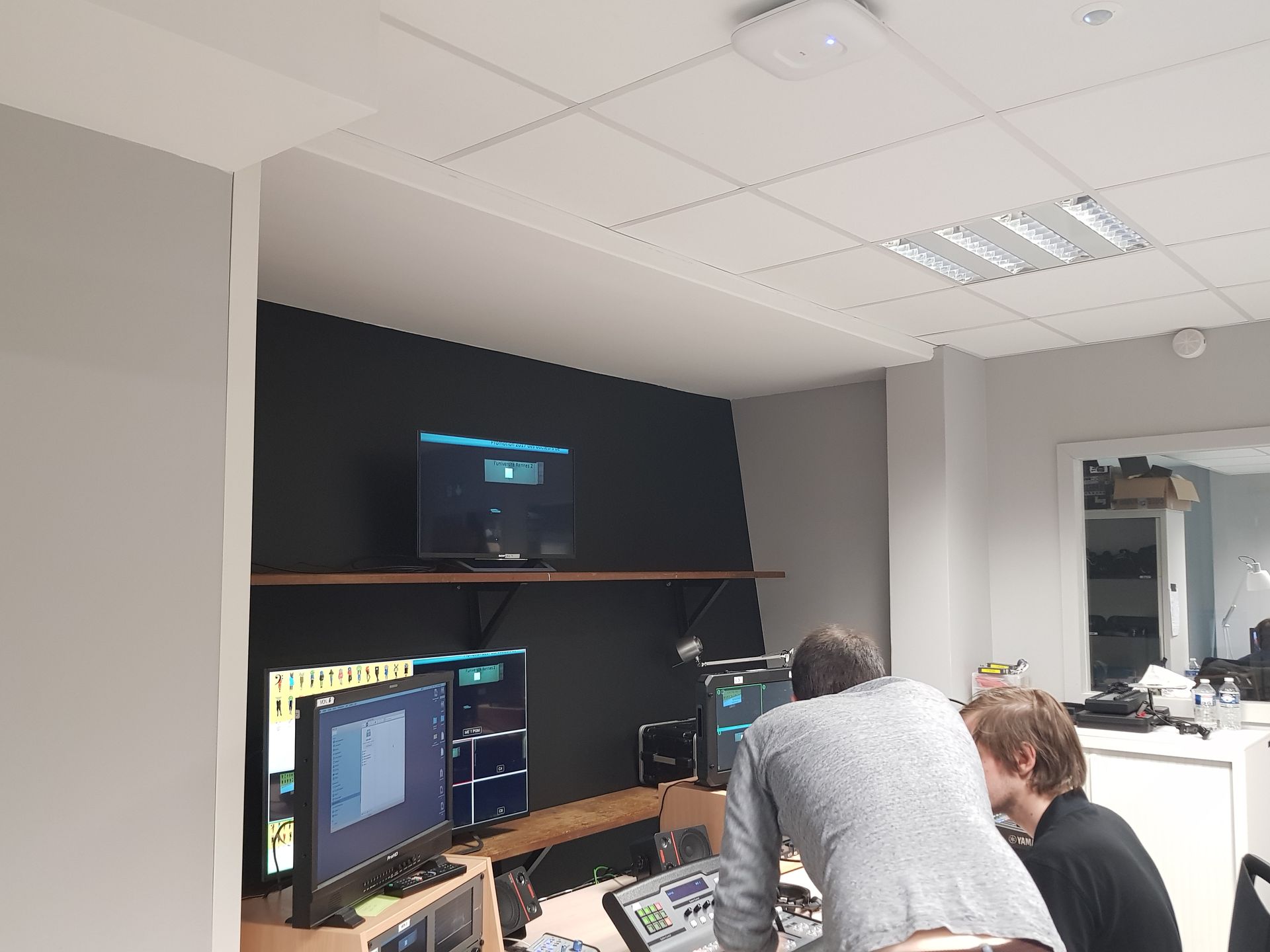

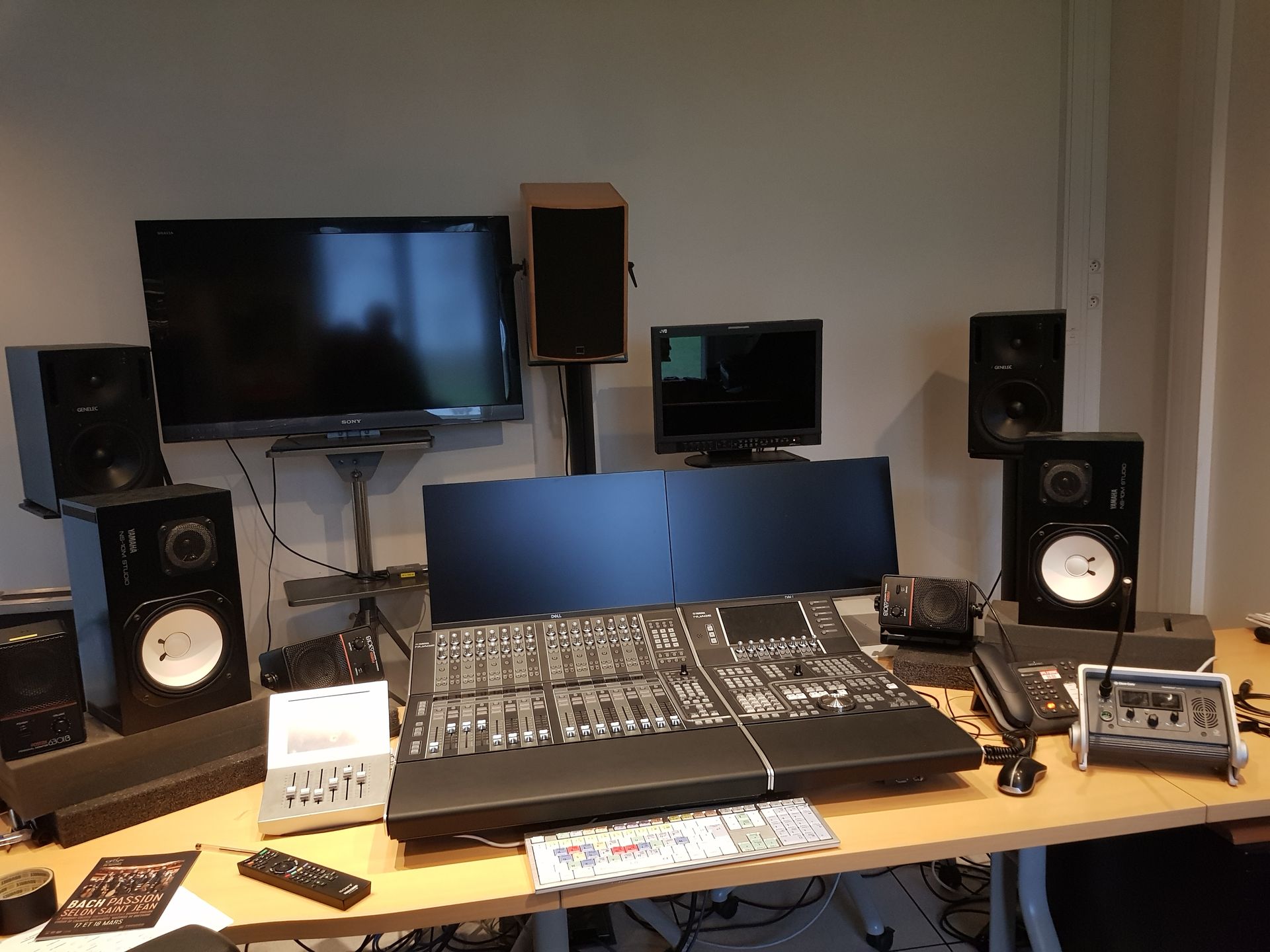

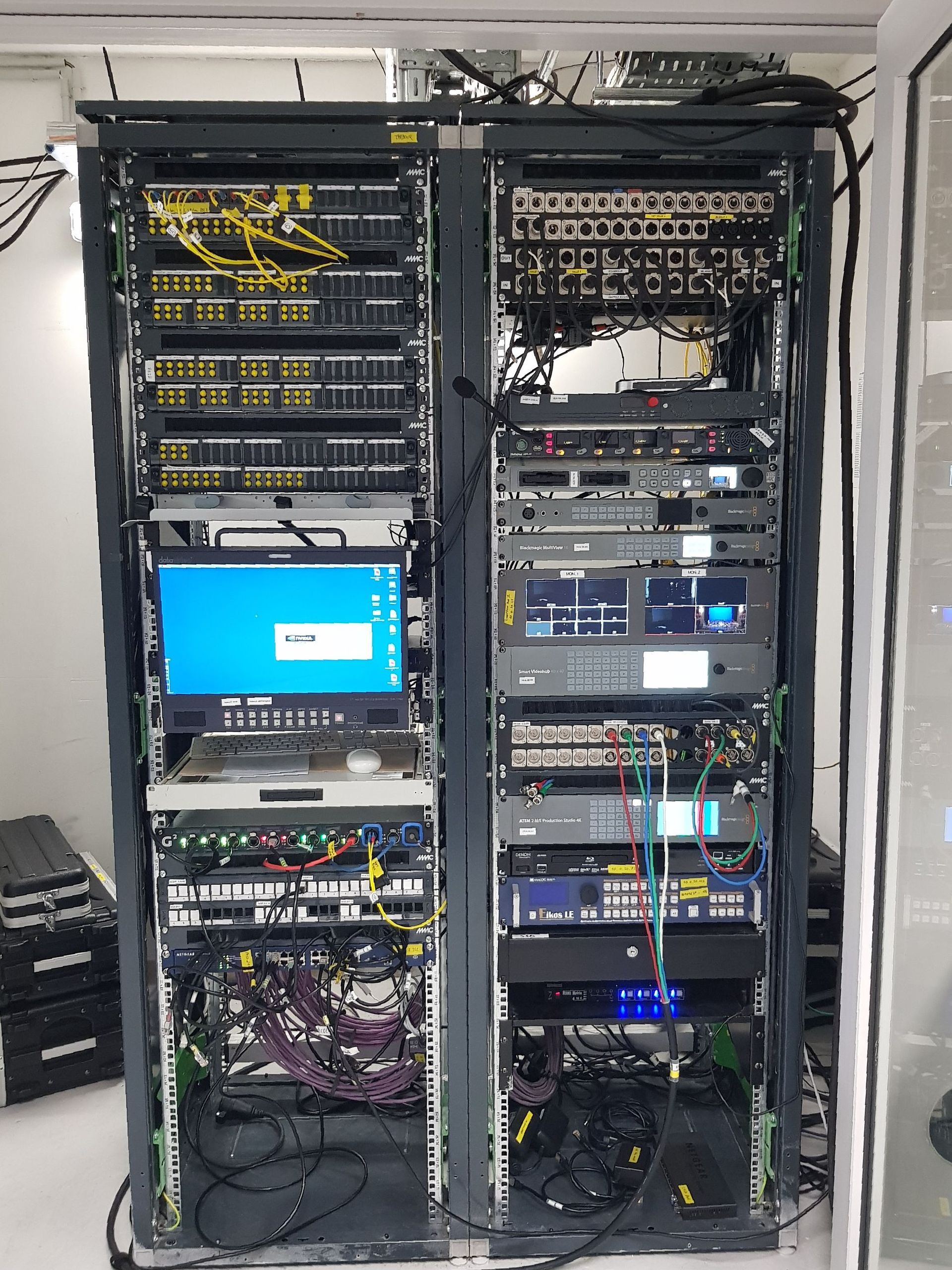

The C.R.E.A. team, led by Christian ALLIO, has designed a standard rack to combine IP, video and communication flows between the University and other buildings in the city of Rennes, via a double fiber optic link. This enables them to capture any event in the city from their studios located within the university grounds. Working conditions are optimal, and days are reasonable. No more small dressing rooms for recording, no more 16-hour days ;-).

A few words about remote production

Technical setup

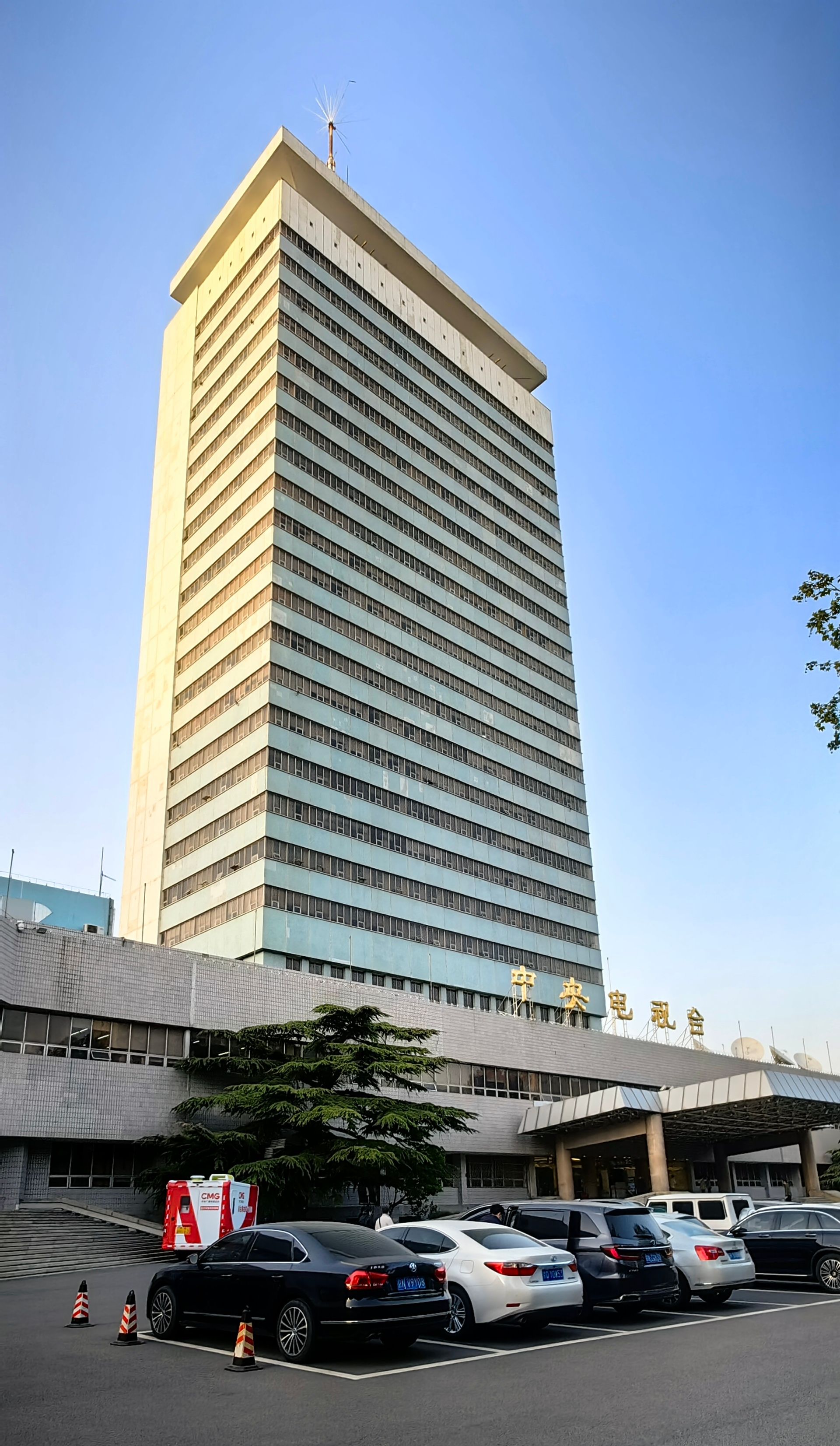

Muse Technology participated in the recording of the May 4th program on China Central Television. CCTV is a national television broadcaster of China.

• PA system: AMADEUS
• Audio mixing: STAGETEC


3*GHOST-mk2

2* GHOST 2

1* GHOST PI

1* H1 + AxC-MADI

AUDIO

NDI

LIVE

BROADCAST



10 GIGABITS

A well-designed network!

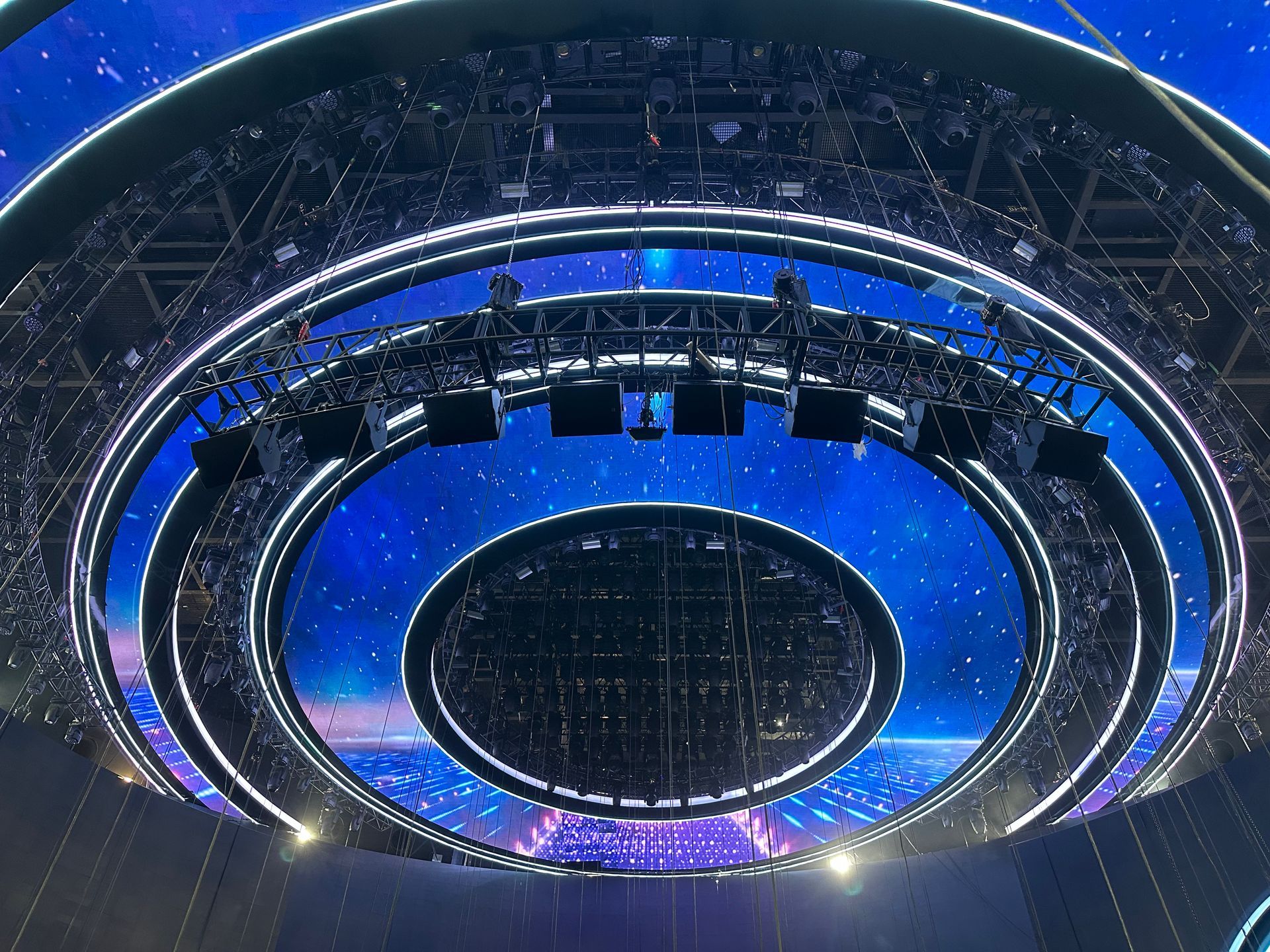

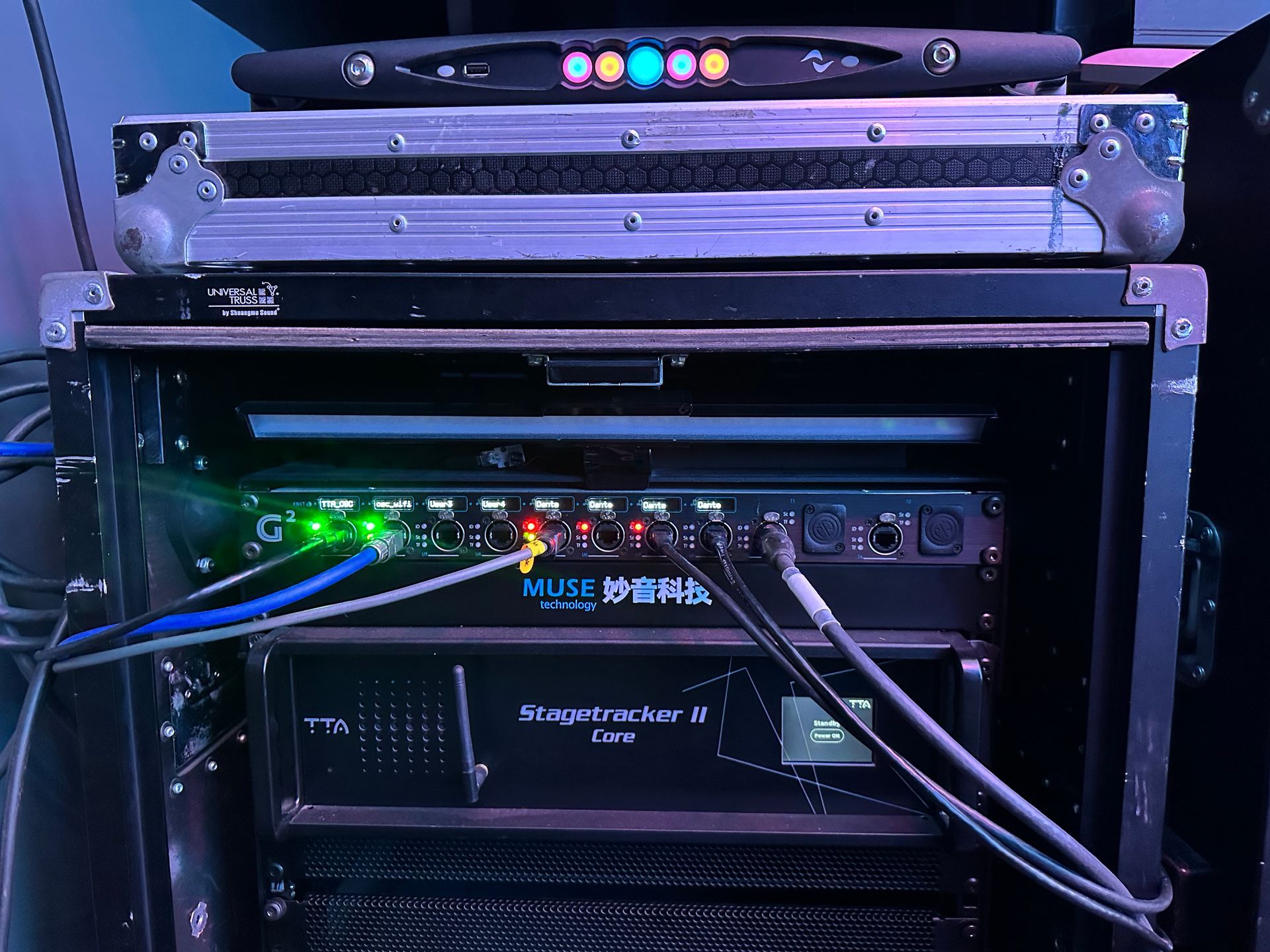

Ghost-mk2 as convergent network core, linking the Ghost 2s upstairs, the power amplifier cabinet on the floor and finally the Ghost 2 and H1 in the control room. The H1 is equipped with a MADI card and is connected to a Stagetec broadcast mixer.

Thank you to MUSE TECHNOLOGY :

Technical setup

A fine example that brings together several specialists. RF Transmission & PRG Belgium, who supplied and managed a high-performance audio configuration.

• ADAMSON P.A. system (E15, E12, E219, Y18)
• YAMAHA mixing (4*CL5 and 5* RIO)
• RIEDEL Coms  Bolero & Artist
• SENNHEISER RF microphones 6000 series
• IEM WISICOM
• RF over fiber


GHOST PI

AUDIO

LIVE

BROADCAST

ADMIN

1 GIGABIT

A wonderful story

"Décrocher la lune" was born out of the desire of the City of La Louvière and the Centre culturel régional du Centre to create a unique event to mark the arrival of the year 2000. They invited Franco Dragone, who had recently settled in La Louvière after a distinguished career with Cirque du Soleil, to take on the artistic direction of the project.

The founding idea was to enable the people of La Louvière to showcase the know-how of a town that is often the victim of negative prejudice, and to deliver a message of resistance and hope. This hope will be embodied by Sancho Gilles, a character represented by a giant puppet. He climbs the church tower and literally picks up the moon.

A few words from a team member:

Technical setup

MUSE TECHNOLOGY was responsible for the design, while MINGZHIHUI installed the audio and network systems. A total of :

• 1* Ghost 2 at the heart of the network

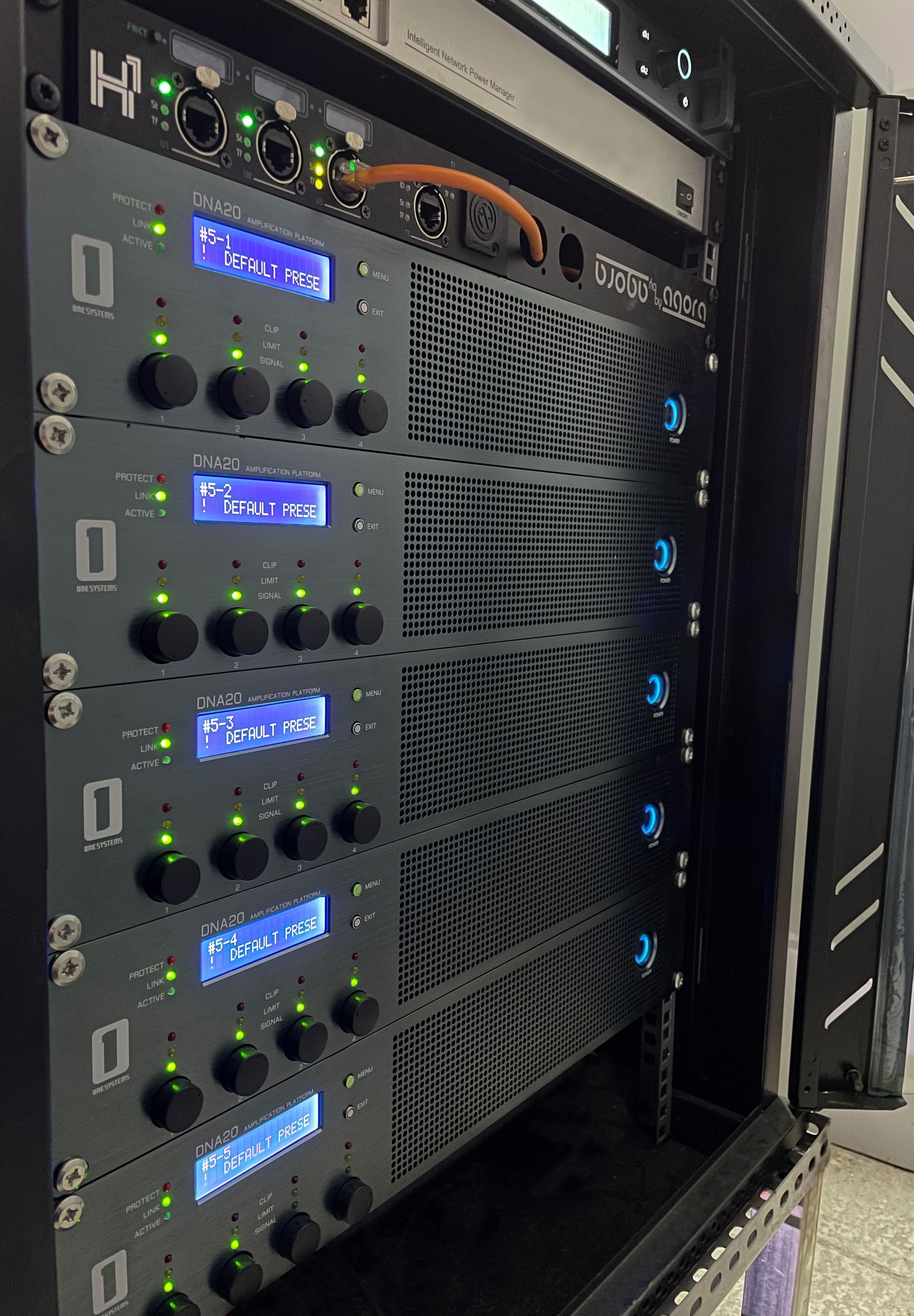

• 4* H1 + Auvitran AxC-DX8o card (AES/EBU outputs) to deliver the audio signal to the One Systems amplifiers.

Audio setup: 104/STH, 106/STH, 108/STC, XFS, 121(SUBS) One Systems loudspeakers and 22* DNA20 Amplifiers - One System

1*GHOST 2

4* H1 +AxC-DX8o

AUDIO



LIVE

EXPERIENCE

1 GIGABIT

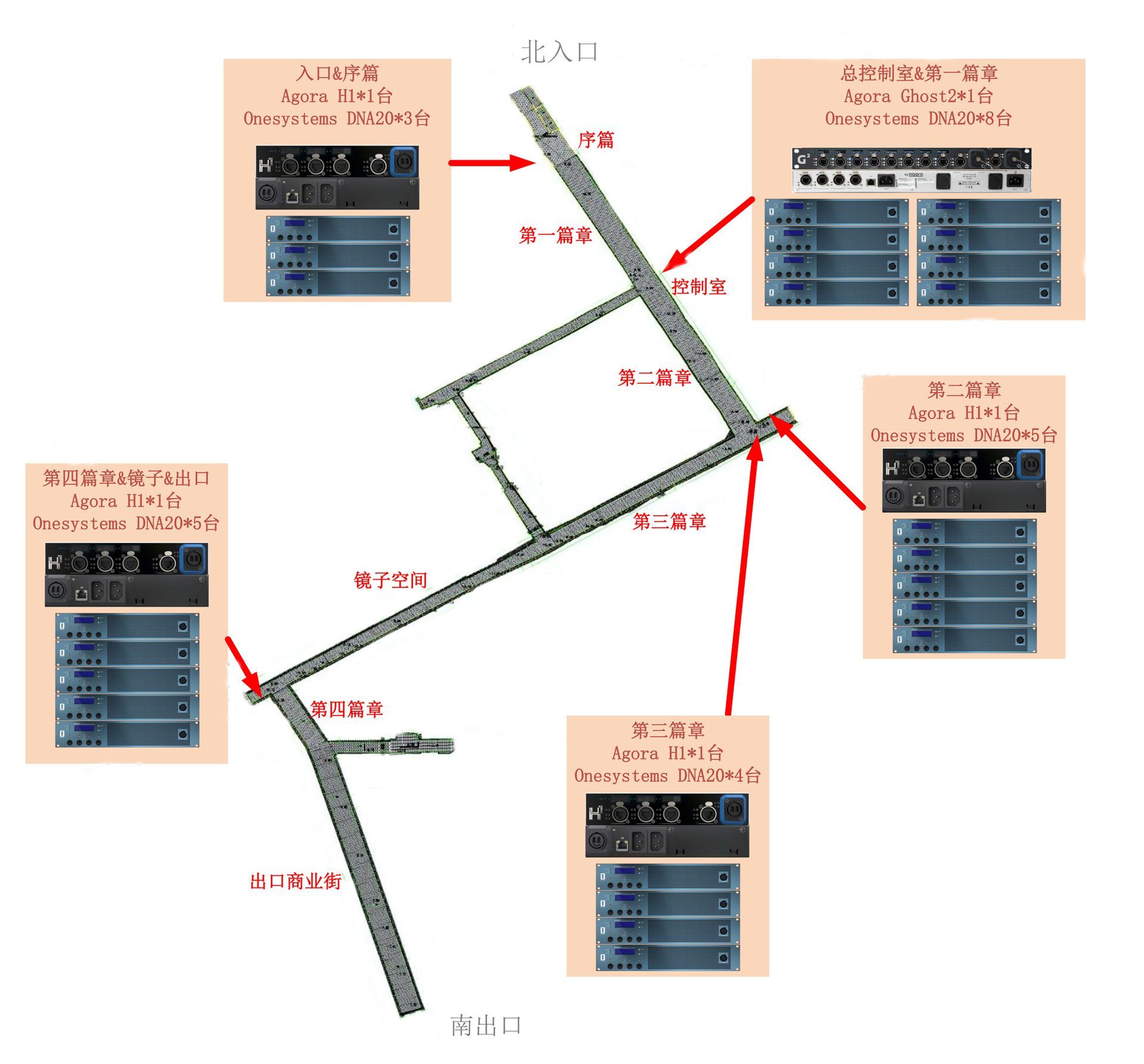

A city-wide network!

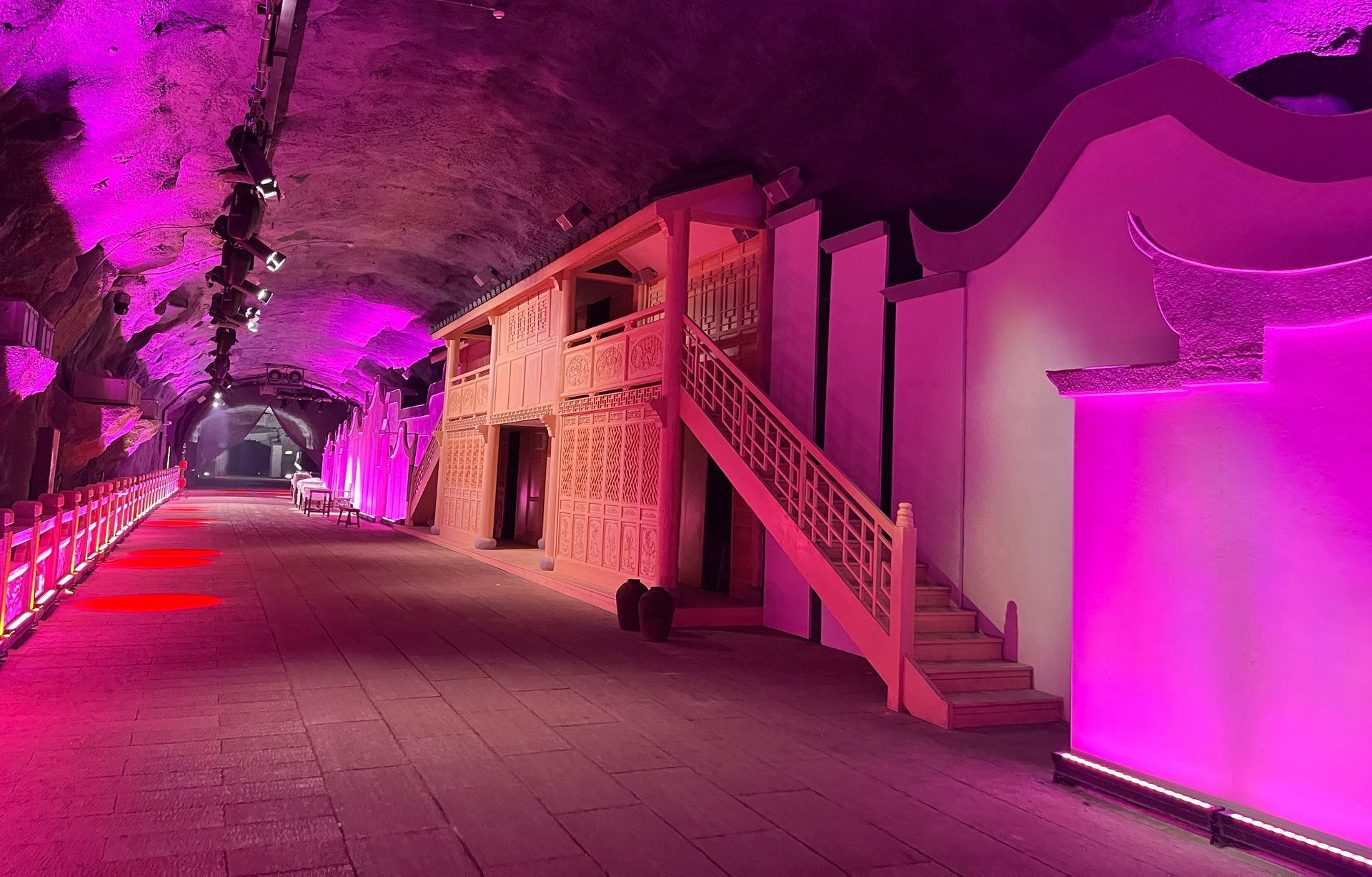

Thanks to fiber optics and networks, the MINGZHIHUI team were able to deploy a Dante-based architecture and convert audio channels to deliver streams in AES/EBU format to all four corners of the city of Wushan, Fuzhou.

H1's internal Auvitan matrix allows the construction of audio bridges in DANTE<>AES or other formats, thanks to the various Auvitran cards available.

Thank you to the MUSE TECHNOLOGY team:

Technical setup

The team at CDN Olympia in Tours, headed by Laurent Choquet, decided to think about an AV network in 2020. The 700-seat theater was renewing its sound console, PA system, and wanted to install an audiovisual network capable of converging all audio, lighting and video requirements. It was therefore necessary to understand the internal workings, the needs of each team and the strategic access points.

• PA system L-ACOUSTICS series, X12, X8, 5XT, A10, SB15 et KS21 - Amplification LA4X
• Audio mixing YAMAHA CL5 + Avitran Audiotoolboxes as stageboxes
• Intercom GREEN GO
• RF Microphes SENNHEISER 6000 series

Light: AVAB Cobalt

Vidéo: Videoprojector PANASONIC PT-DZE-W-XGA

2*GHOST X

1*GHOST PI

1*H1

AUDIO

LIGHT

VIDEO

LIVE

BROADCAST

ADMIN

1/ 10 GIGABITS

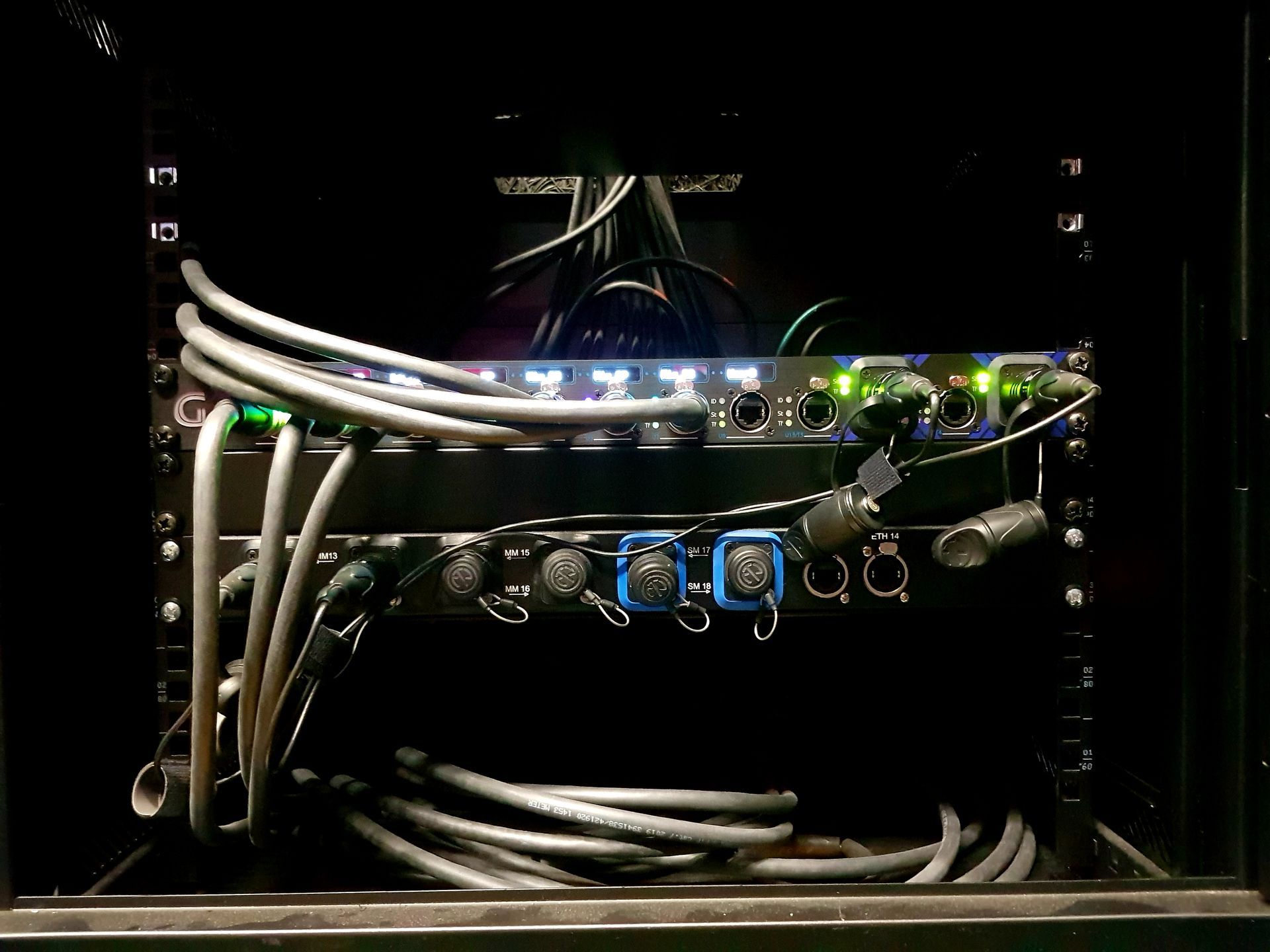

AV network access at any point!

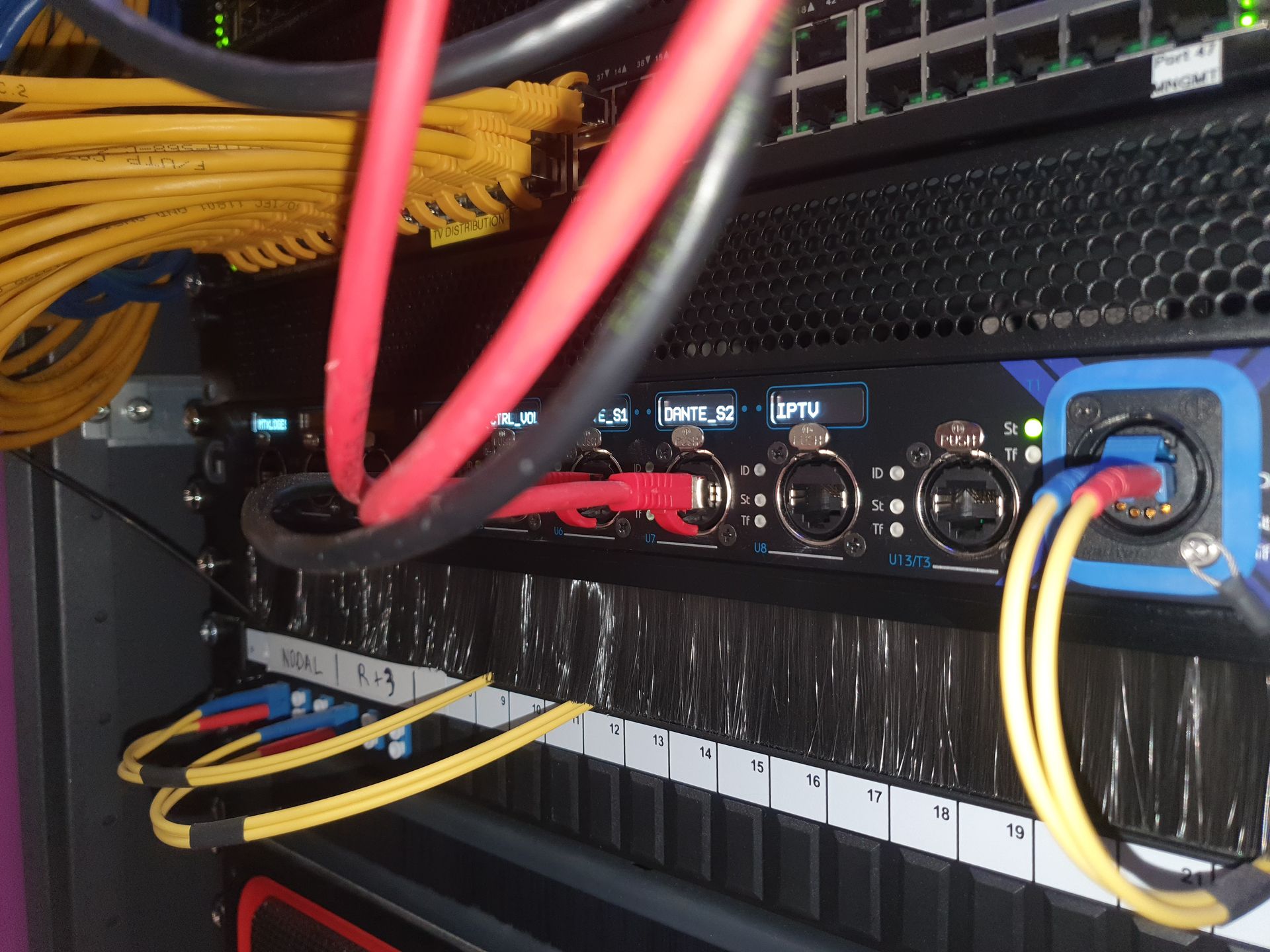

The decision is taken collegially around the table by the audio, lighting and video teams. A patch bay located in the control room will allow any signal (in RJ45 or fiber optic format) to be routed from point A to point B. In addition, a 10 Gigabit network link via 2* GHOST X will provide access to Dante P/S, Art Net and NDI protocols. 1* GHOST X will follow the mobile control room (middle of tier, top of tier or high control room) and 1* GHOST will be on stage.

So

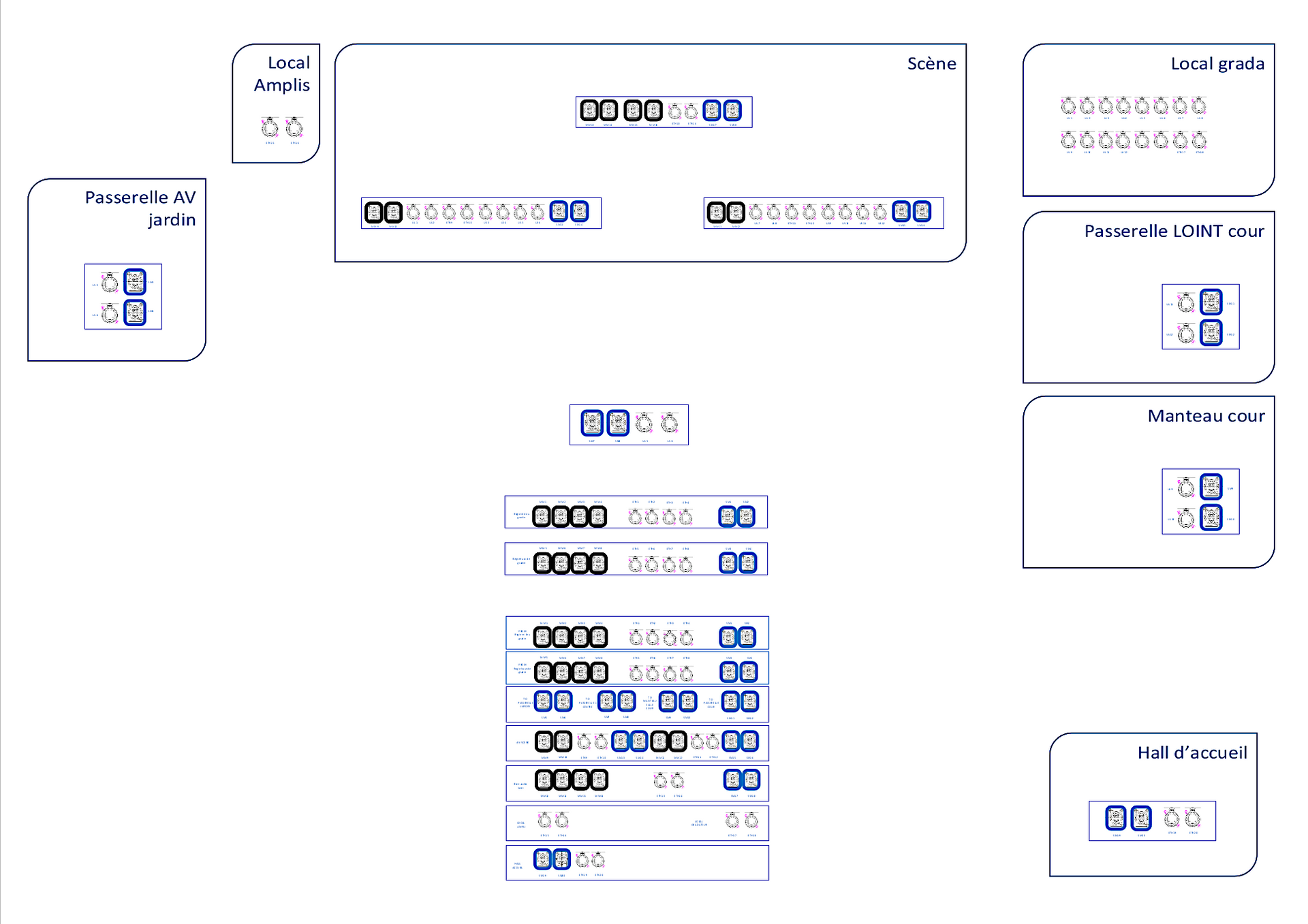

Network architecture:

• 2*GHOST X ensure the 10G Control room location <> Stage link
• 1*GHOST PI into the dimmer light room

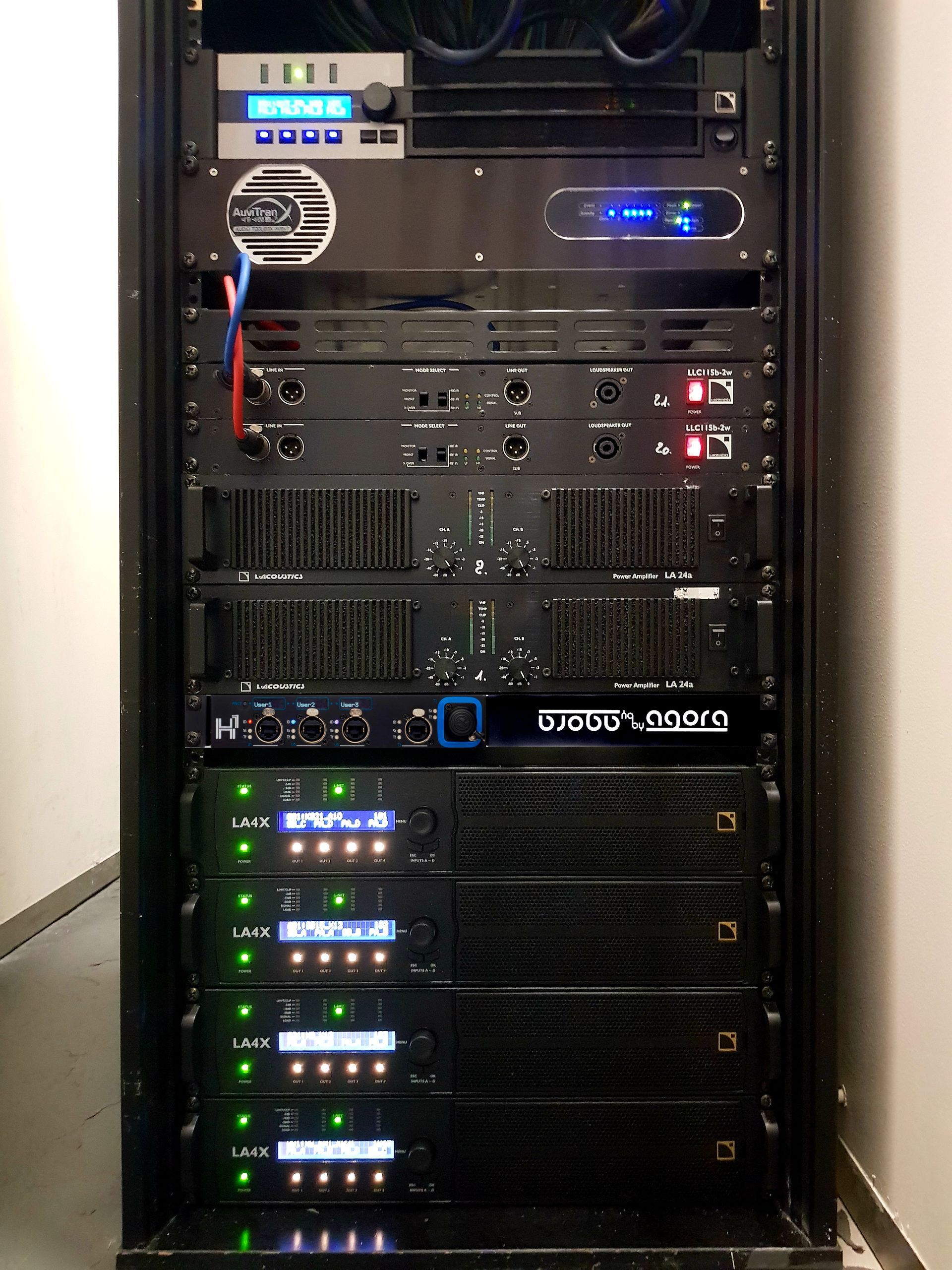

• 1*H1 into the amplifiers rack as a DANTE/ AVB-MILAN

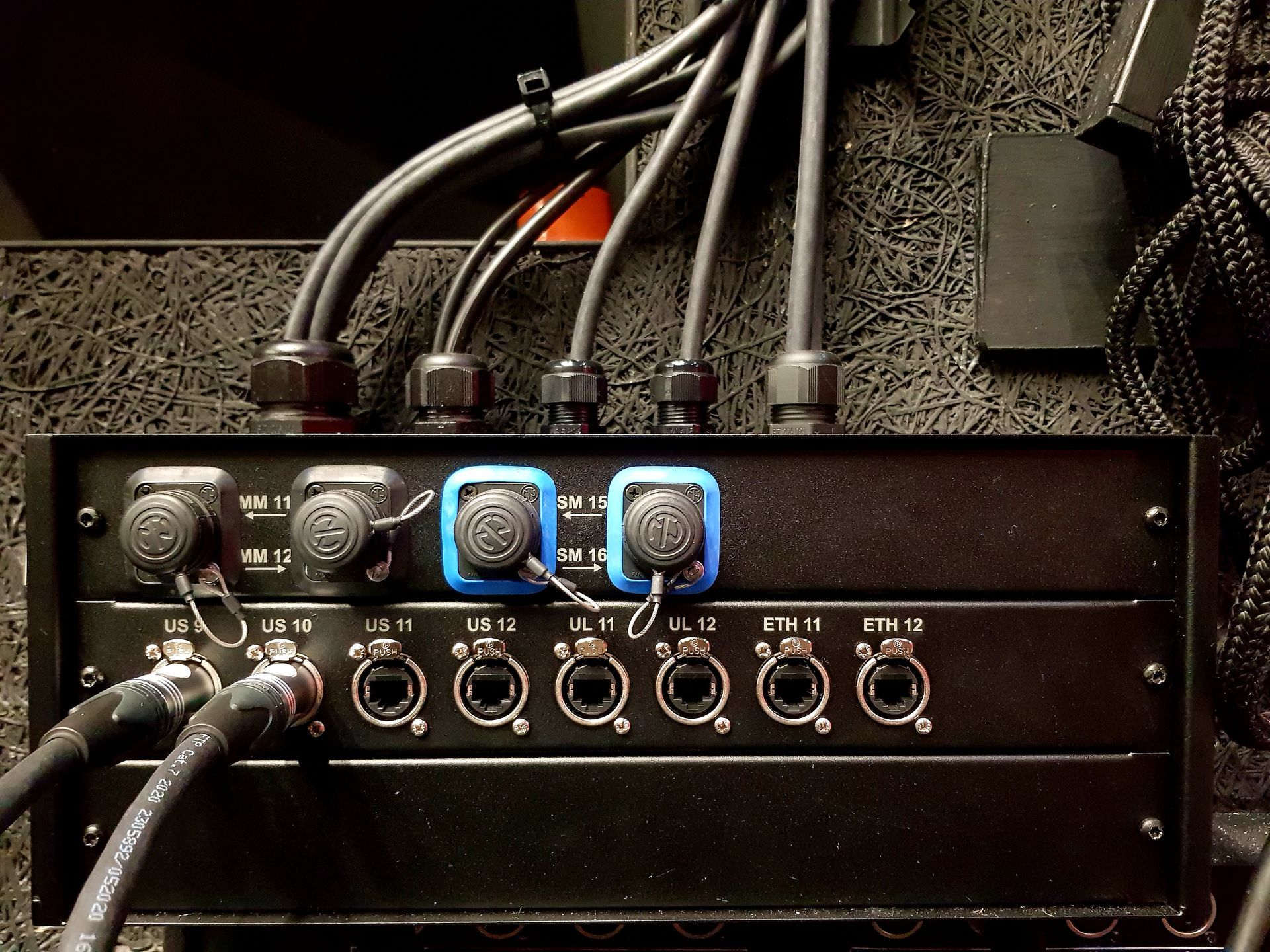

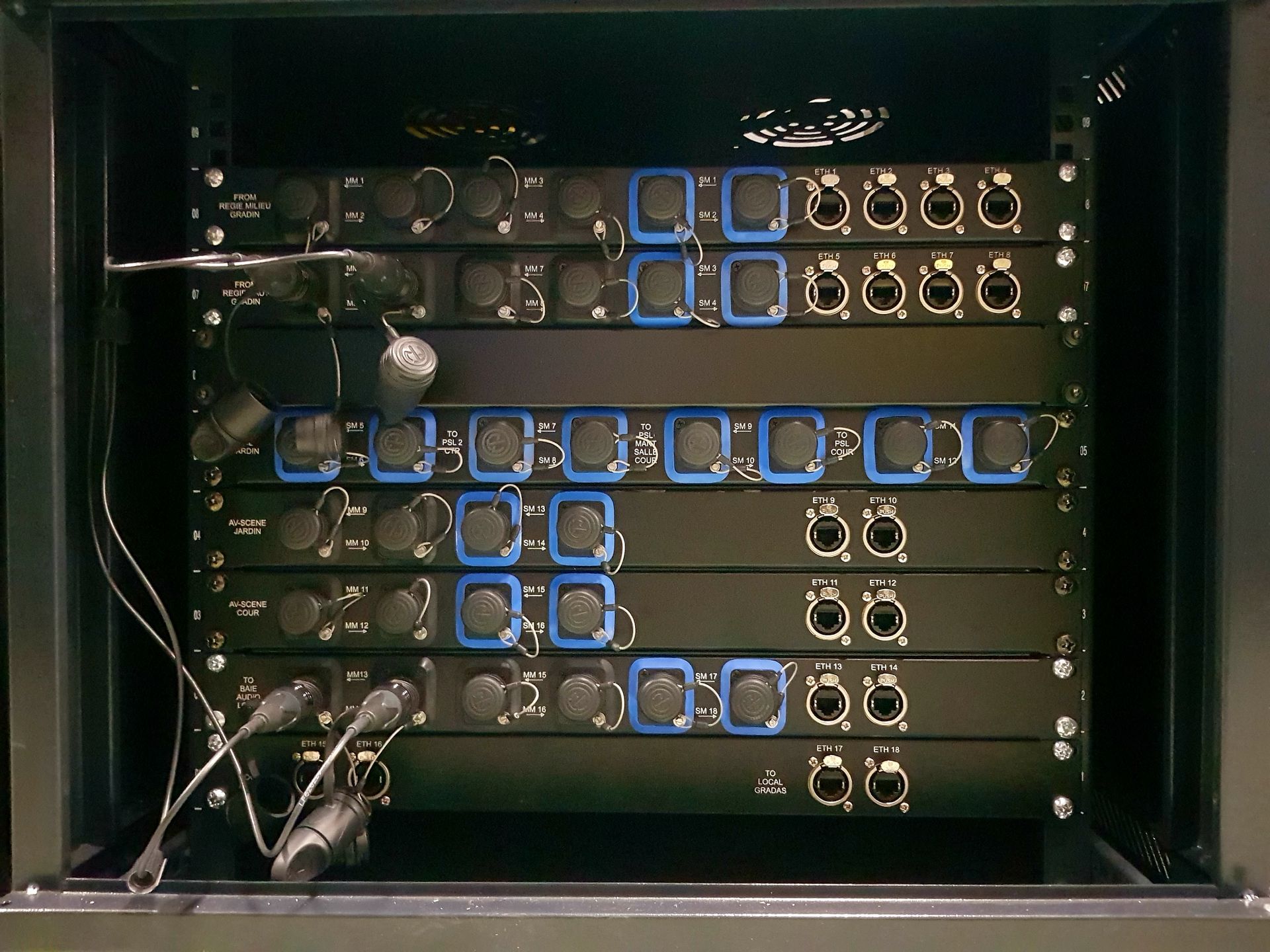

RJ45 et Optical fiber architecture:

• A nodal - Central patch
• Several patch boxes at Remote control in the tier, on the stage, on catwalks, in master control rooms, in entrance halls, etc....;


*

Technical setup

LMG was the lighting and video vendor for the Subtronics Tesseract Tour 2024.

“LMG is a full service production company; one stop shopping at its best, and for  Subtronics we provided a 360⁰ solution.

Media servers, LED wall, lighting, rigging, and audio were prepped and launched from our Las Vegas facility.

• Ghost-mk2

4*GHOSTMK 2

LIGHTING/VIDEO

/LASER

LIVE

EXPERIENCE

10 GIGABIT

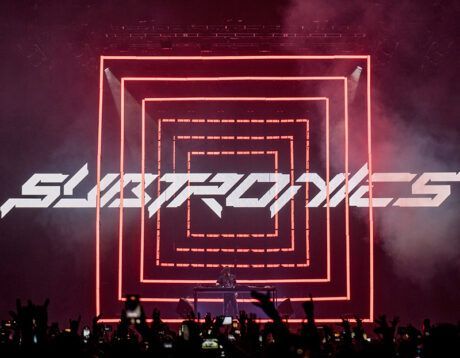

Bringing the Tesseract to Life :

After his debut album, FRACTALS, dropped in 2022 and explored the geometric concept of literal fractals, electronic DJ Subtronics most recently released TESSERACT. His latest album, tour, and stage/vessel for world-building, he captures the sounds of those unfathomable phenomena. His sonic portal? The tesseract—a hypercube concept wherein each side peels back and reveals another cube, identical yet infinitesimally different. The four-dimensional analog of a cube.

Technical setup

• 3* AGORA Ghost-mk2 (GMK2.XS.XSQ)
• CLEARCOM FreeSpeak
• YAMAHA RIO
• LAB GRUPPEN PLM Series
• ALLEN & HEATH DLIVE S7000/ S3000/ DM0/ DM48

gigaACE

Dante

AES67

Ethernet
